Sanyo Denki

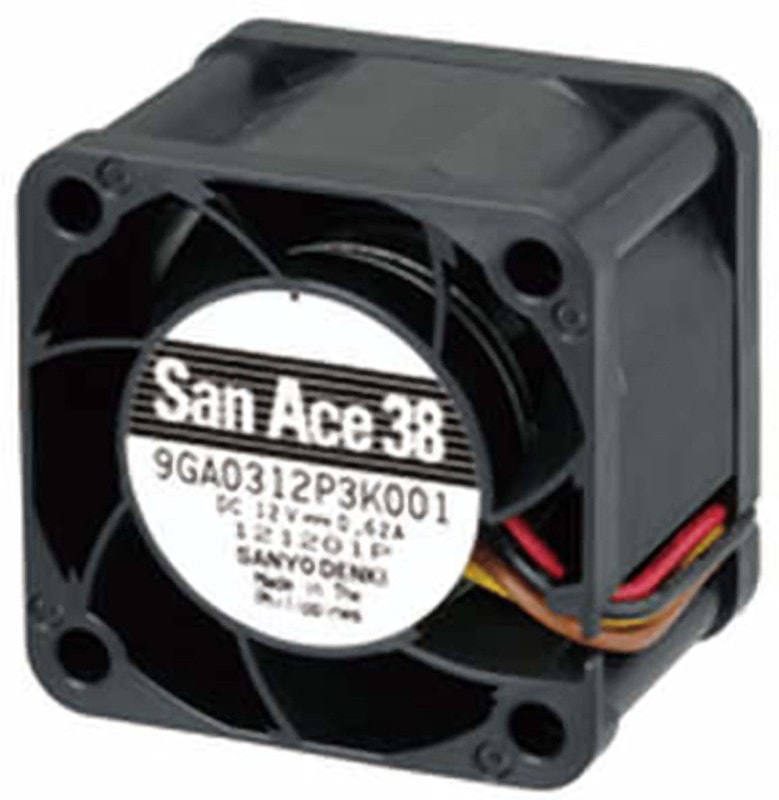

8008667776 9GA0312P3K001, Fan Tubeaxial 12VDC Square — 38mm L x 38mm H Ball 21.2 CFM (0.594m³/min) 4 Wire Leads Hirschmann
3380,00 ₽
Описание
San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements.
| Вес, г | 55 |
| Air Flow | 36m³/h |
| Mounting | Flange Mount |
| Special Features | Low Power Consumption|High Static Pressure |
| Размеры рамы,мм | 38×38 |
| Рабочее напряжение,В | 12 |
| Питание | 4pin |
| Product Category | DC Fan |
| Type | Axial |
| Width | 38mm |
| AC or DC Operation | DC |
| Sensor Type | PWM, Tachometer |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 3.21inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Polarity |
| Shape | Square |
| Size (mm) | 38 X 38 X 28 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 7.4 |
| Nominal Speed (r/min) | 25000 |
| Maximum Airflow (CFM) | 21.2 |
| Noise Level (dB) | 59 |
| Bearings | Ball |
| Line Current (A) | 0.62 |
| Operating Input Voltage Range (V) | 10.8 to 13.2 |
Детали
| Бренд | Sanyo Denki |
|---|
