Sanyo Denki

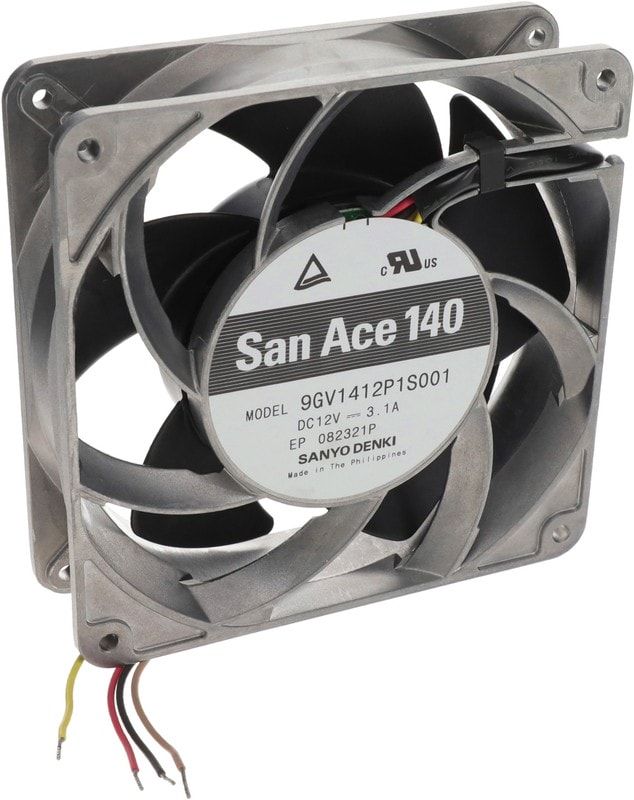

8008668510 9GV1412P1S001, Fan Tubeaxial 12VDC Square — 140mm L x 140mm H Ball 272.0 CFM (7.62m³/min) 4 Wire Leads Hirschmann
16720,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 140mm L x 140mm H Ball 272.0 CFM (7.62m³/min) 4 Wire Leads
| Вес, г | 635 |
| Air Flow | 272 CFM(7.62m³/min) |
| Fan Type | Tubeaxial |
| Series | San Ace 140 |
| Размеры рамы,мм | 140×140 |
| Рабочее напряжение,В | 12 |
| Питание | 4pin |
| Manufacturer | Sanyo Denki America Inc. |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 67.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Size / Dimension | Square-140mm L x 140mm H |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| Current Rating (Amps) | 3.1A |
| Ingress Protection | — |
| Static Pressure | 1.93 in H2O(480.8 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 37.2 W |
| RPM | 6650 RPM |
| Voltage — Rated | 12VDC |
| Part Status | Active |
| Voltage Range | 10.8 ~ 13.2VDC |
| Approvals | CSA, TUV, UL |
Детали
| Бренд | Sanyo Denki |
|---|
