NMB Technologies

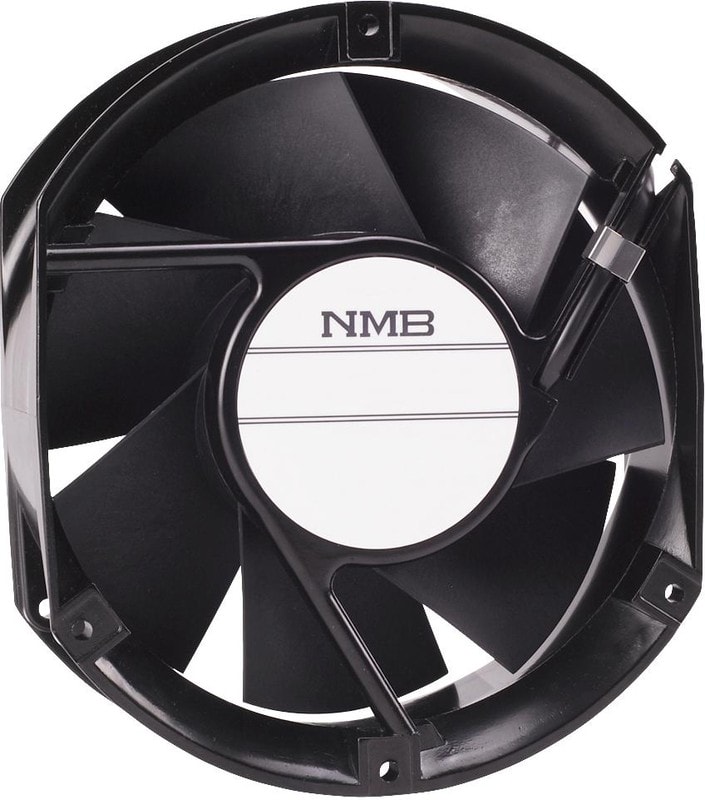

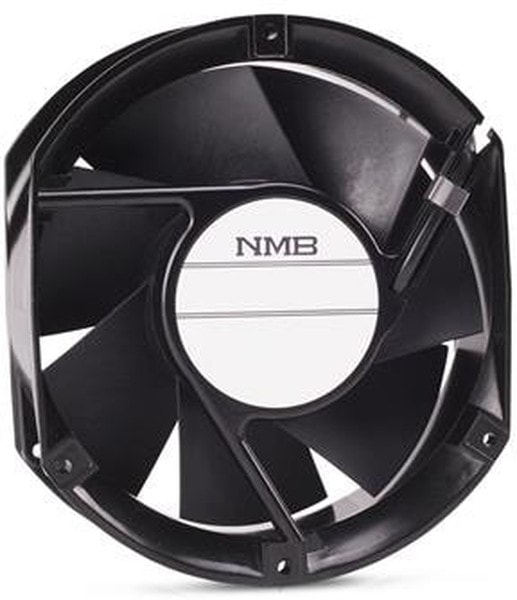

8009014052 15050VE-48R-GT-00, DC Fans Tubeaxial Fan, 172x150x50mm, 48VDC, Stainless Steel Ball, 3 Wire, IP68/IP69K Hirschmann
14490,00 ₽
Описание
IP69K Cooling Fans
NMB Technologies IP69K Cooling Fans are available in a range of sizes with a 12V DC, 24V DC, or 48V DC operating voltage and airflow ranging from 12.36CFM to 346.8CFM. These fans have the highest extreme environment rating and offer protection against close range, high temperature, and high-pressure spray-downs. Options include a metal casing for even more reliability in high temperatures. NMB Technologies IP69K Cooling Fans operate at a temperature range of -10°C to +70°C. Typical applications include harsh environments, factory automation, food processing industry, refrigeration, LED lighting system cooling, inverters, telecom, and horticulture.
| Вес, г | 0.01 |
| Series | 15050VE |
| Размеры рамы,мм | 172×150 |
| Brand | NMB Technologies |
| Manufacturer | NMB Technologies |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Airflow | 346.8 CFM(9.8 m3/min) |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 10 |
| IP Rating | IP68, IP69K |
| Noise | 68 dBA |
| Operating Supply Voltage | 48 VDC |
| Power Rating | 43.2W |
| Termination Style | Wire Leads-3 |
| Type | Brushless |
| Housing Material | Aluminum |
| speed | 4600 RPM |
| Bearing Type | Ball Bearing |
| Current Rating | 900mA |
| Pressure Type | 1.25 in H2O |
| Air Flow — CFM | 346.08CFM |
| Air Flow — m3/min | 9.8m³/min |
| External Depth | 50mm |
| Fan Frame Size | 150mm |
| Fan Frame Type | Rectangular with Rounded Ends |
| Noise Rating | 68dB |
| Power Connection Type | 3 Lead Wires |
| Rated Speed | 4600rpm |
| Diameter | 172.7 mm |
| Life | 100000 Hours |
| Supply Voltage VDC | 48V |
Детали
| Бренд | NMB Technologies |
|---|
