Same Sky

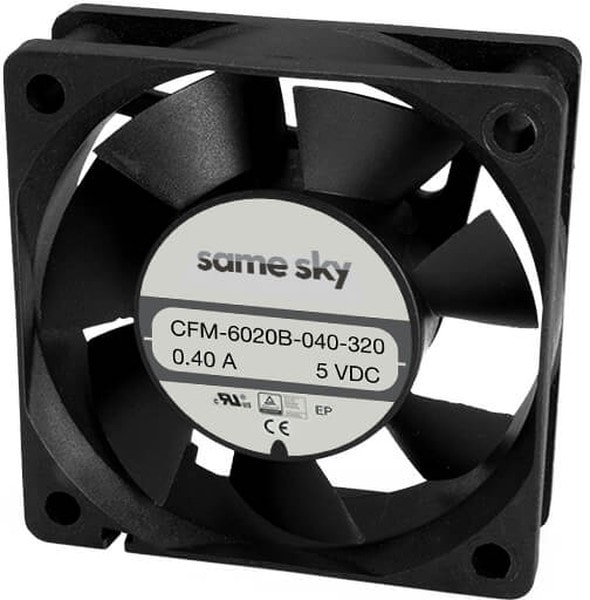

8009032014 CFM-6020B-040-320, DC Fans dc axial fan, 60 mm square, 20 mm, 5 Vdc Hirschmann
1740,00 ₽
Описание
DC Axial Fans CUI Devices DC Axial Fans deliver superior airflow for designs' most challenging cooling requirements. With airflows ranging from 0.33CFM up to 382CFM, these high-performance fans feature dual ball-bearing, sleeve bearing, or omniCOOL™ system construction for maximum reliability. CUI Devices DC axial fans are available in 20mm to 172mm frame sizes.
| Потребляемая мощность, Вт | 2.05 |
| Air Flow | 15.2 CFM(0.426m³/min) |
| Fan Type | Tubeaxial |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 5 |
| Толщина,мм | 20 |
| Brand | Same Sky |
| Factory Pack Quantity | 50 |
| Manufacturer | Same Sky |
| Packaging | Box |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Auto Restart |
| Current Type | DC |
| Noise | 32.0dB(A) |
| Termination Style | Wire Leads |
| Type | Axial |
| Approval Agency | CE, cURus, TUV |
| Operating Temperature | 14 ~ 158°F(-10 ~ 70°C) |
| Termination | 2 Wire Leads |
| Width | 20.00mm |
| Housing Material | Polybutylene Terephthalate(PBT) |
| Static Pressure | 0.12 in H2O(29.9 Pa) |
| Bearing Type | Ball |
| Frame Dimensions — mm | 60 mm L x 60 mm W x 20 mm H |
| Pressure Type | 0.12 in H2O |
| Частота вращения,об./мин. | 4000 |
| Производительность,м.куб./мин. | 15.24 |
| Шум, дБA | 32 |
| Power (Watts) | 2.05 W |
| RPM | 4000 RPM |
| Voltage — Rated | 5VDC |
| Life | 70000 Hour |
| Lead Length | 300 mm |
Детали
| Бренд | Same Sky |
|---|
