EBM-PAPST

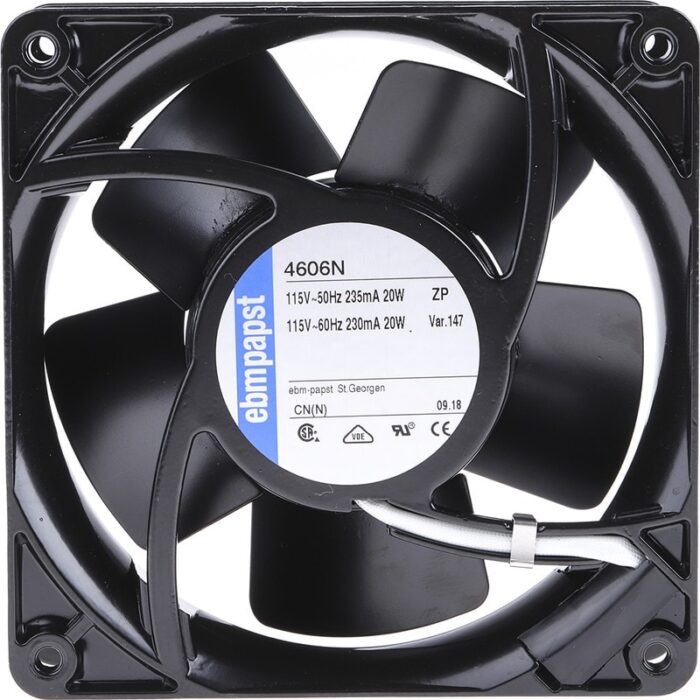

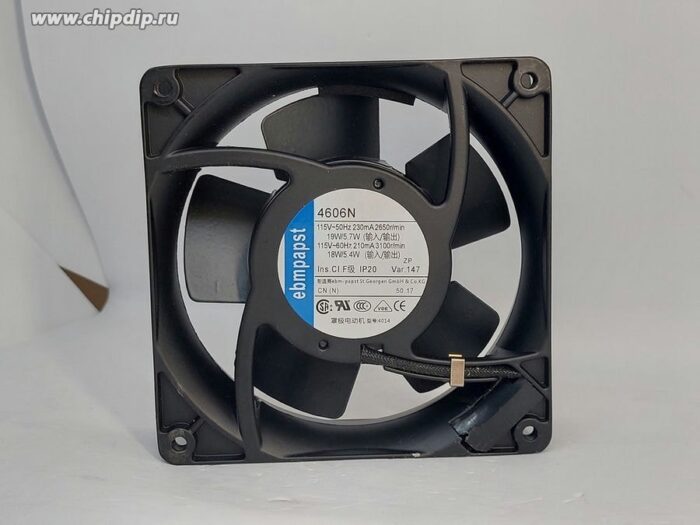

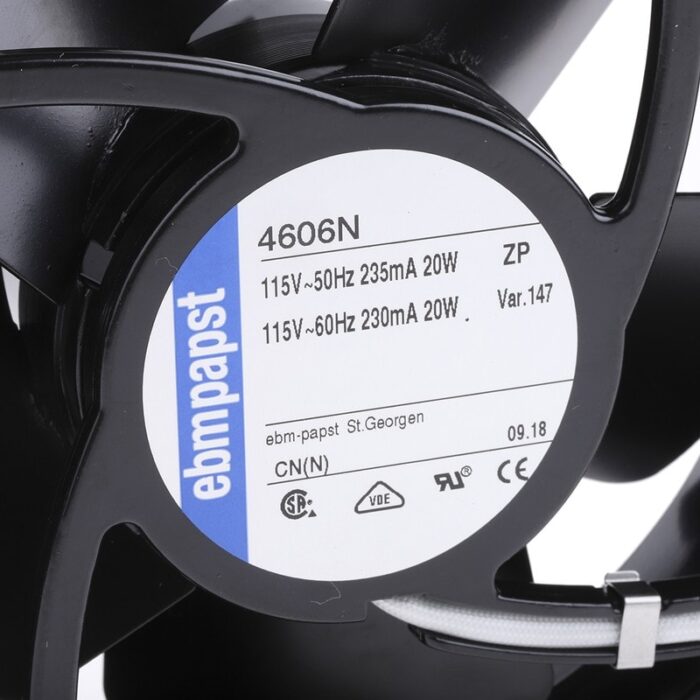

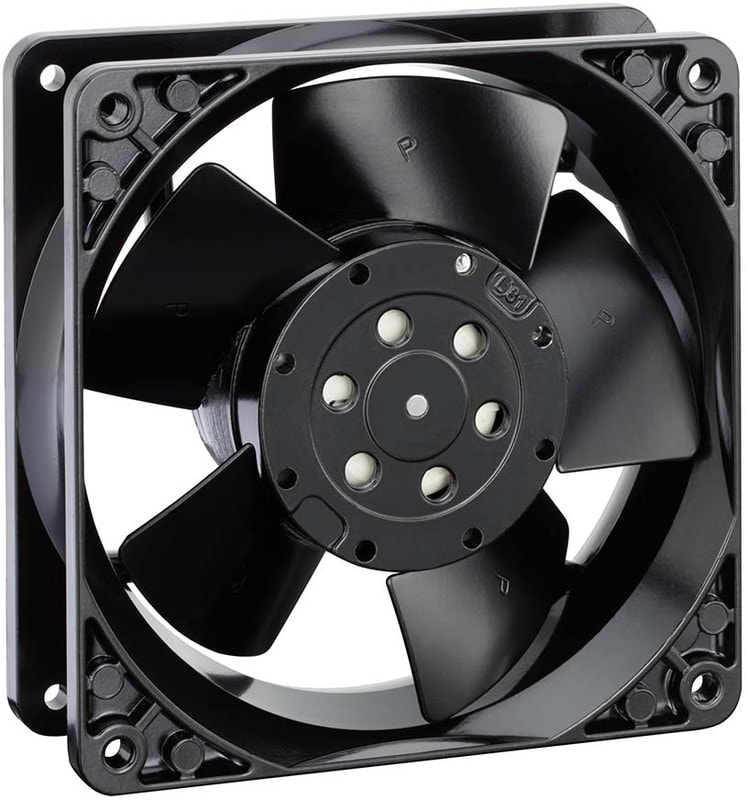

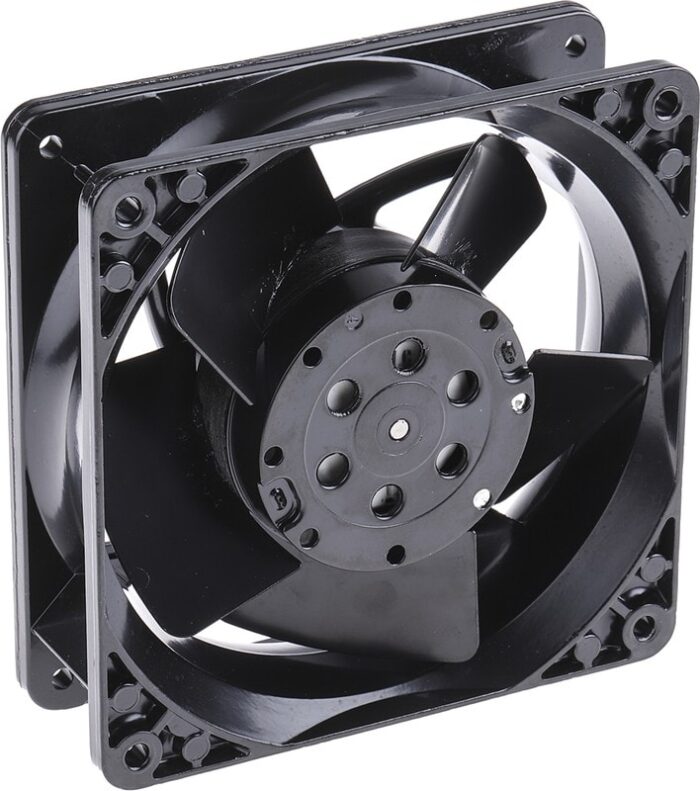

8015506604 Вентилятор Ebmpapst 4606N 115V 50/60Hz 230/210mA 119×38 (120×38) Клемма () Hirschmann
6960,00 ₽
Описание
Описание Вентилятор осевой, 119х119х38мм, 180 куб.м/ч, 115VAC, подшипник качения Характеристики
| Категория | вентилятор |
| Тип | осевой |
| Вес, г | 550 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 51 dB |
| Series | 4000N-> |
| Special Features | None |
| Размеры рамы,мм | 119×119 |
| Рабочее напряжение,В | 5 |
| Толщина,мм | 38 |
| Product Category | AC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | ROHS3 Compliant |
| IP Rating | IP20 |
| Noise | 51.0dB(A) |
| Power Rating | 18 W |
| Type | Axial |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp. | 40000 Hrs @ 40В°C |
| Material — Blade | Metal |
| Material — Frame | Metal |
| Operating Temperature | -40 ~ 194В°F(-40 ~ 90В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Terminals |
| Weight | 1.2 lbs(544.3 g) |
| Width | 38.00mm |
| Category | AC Fan |
| COO | CN |
| Housing Material | Metal |
| Maximum Airflow | 105 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
| Power consumption | 18 W |
| Rated voltage | 115 V |
| Sound pressure level | 51 db |
| speed | 3100 1/min |
| Type of bearing | ball bearing |
| Version | AC axial fan |
| Volume flow | 180 m³/h |
| AC or DC Operation | AC |
| HTS | 8414.59.15.00 |
| Termination Type | Flat Plug |
| Part Status | Active |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 90 |
| Minimum Operating Temperature (°C) | -40 |
| Protection | Impedance |
| Shape | Square |
| Size (mm) | 119 X 119 X 38 |
| Product Height (mm) | 38 |
| Product Length (mm) | 119 |
Детали
| Бренд | EBM-PAPST |
|---|
