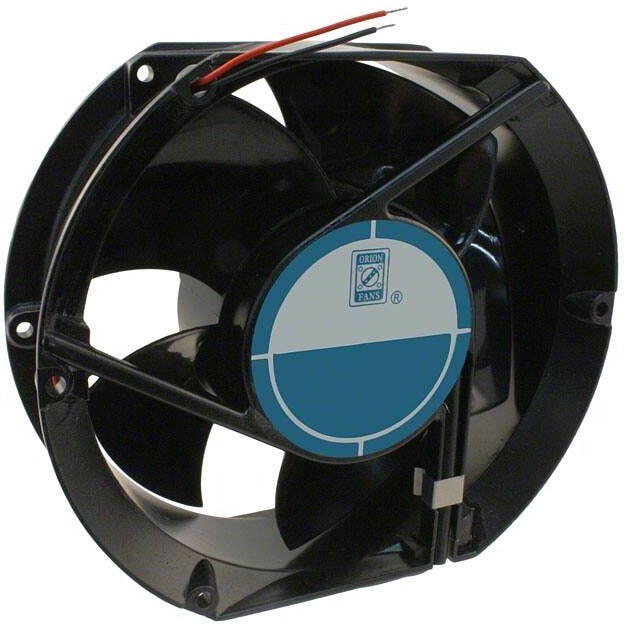

8015539246 OD172SAP-12HB,DC Axial Fan, 12 V, Rectangular with Rounded Ends, 172 mm, 51 mm, Ball Bearing, 230 CFM Hirschmann
40860,00 ₽
Описание
Fan Tubeaxial 12VDC Rectangular/Rounded — 172mm L x 150mm H Ball 230.0 CFM (6.44mВі/min) 2 Wire Leads
| Вес, г | 816 |
| Fan Type | Tubeaxial |
| Series | OD172S-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 51 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| Noise | 52.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 40000 Hrs @ 60В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 167В°F(-20 ~ 75В°C) |
| Size / Dimension | Rectangular/Rounded-172mm L x 150mm H |
| Termination | 2 Wire Leads |
| Width | 50.80mm |
| Current Rating (Amps) | 1.9A |
| Static Pressure | 0.75 in H2O(186.8 Pa) |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 230 |
| Шум, дБA | 52 |
| Voltage Range | 8 ~ 14VDC |
Детали
| Бренд | Orion Fans |
|---|
