Sanyo Denki

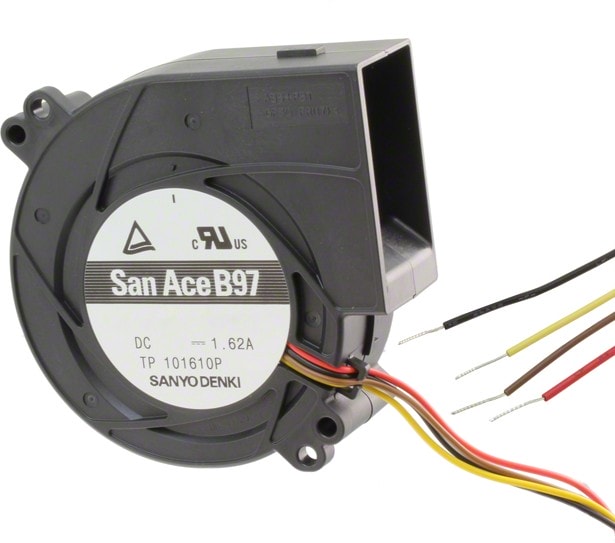

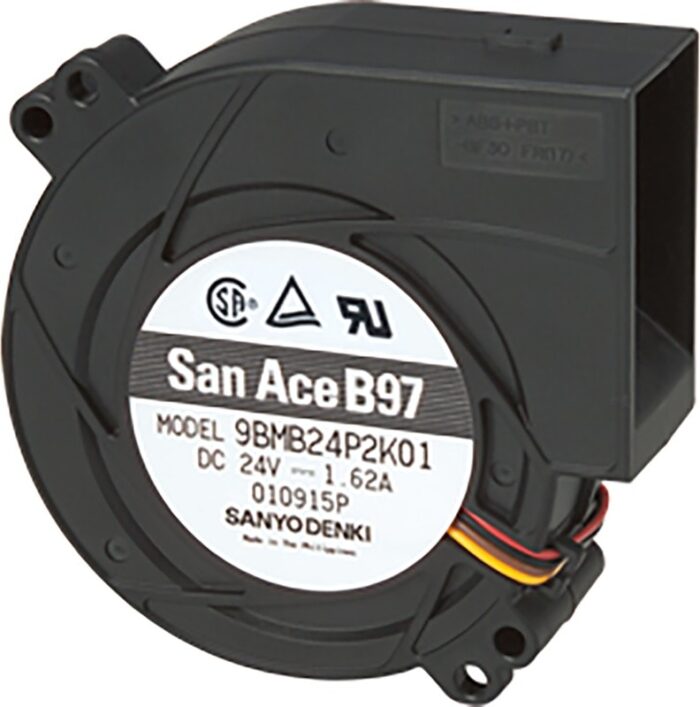

8016182576 9BMB24P2H01, San Ace B97 Series Blower, 24 V dc, 39.2cfm, DC Operation, 97 x 97 x 33mm Hirschmann
11820,00 ₽
Описание
With high static pressure, Blowers are suitable for cooling equipment with high system impedance and high heat generation such as servers, storage systems, and base stations.
| Air Flow | 39.2cfm |
| Fan Type | Blower |
| Noise Level | 66dB(A) |
| Series | San Ace B97 |
| Supply Voltage | 24 V dc |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor(Tach) |
| Noise | 57.0dB(A) |
| Approval Agency | cURus, TUV |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 97mm |
| Static Pressure | 490Pa |
| Bearing Type | Ball |
| Blower Type | Blower |
| Power (Watts) | 13.2 W |
| RPM | 4850 RPM |
| Voltage — Rated | 24VDC |
| AC or DC Operation | DC |
| Maximum Current | 550mA |
| Fan Speed | 4850rpm |
| Direction of Curve | Backward |
| Mounting hole diameter | 4.5mm |
| Horizontal Hole Spacing | 71mm |
| Mounting Hole Spacing | 71x71mm |
| Sensor Type | PWM |
| Vertical Hole Spacing | 71mm |
| Termination Type | Lead Wire |
| Inlet Diameter | 56mm |
Детали
| Бренд | Sanyo Denki |
|---|
