EBM-PAPST

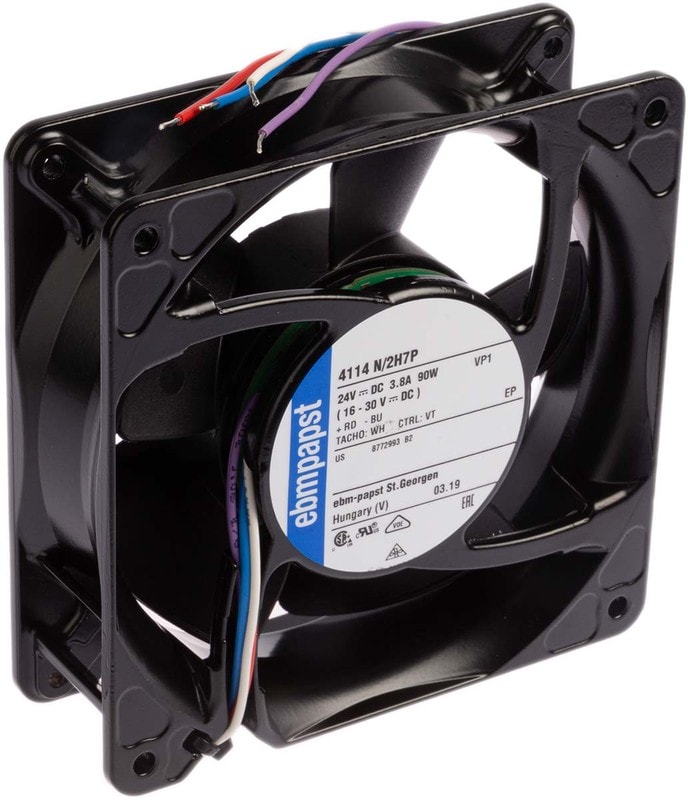

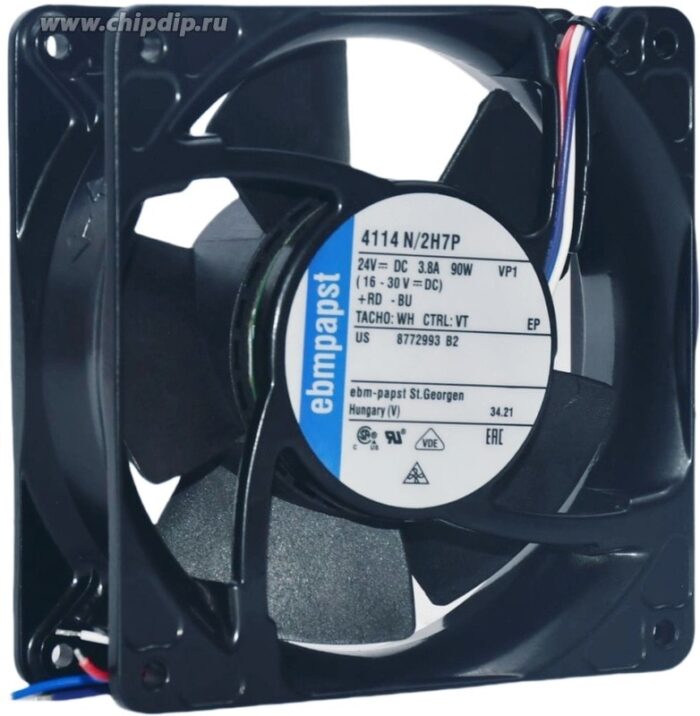

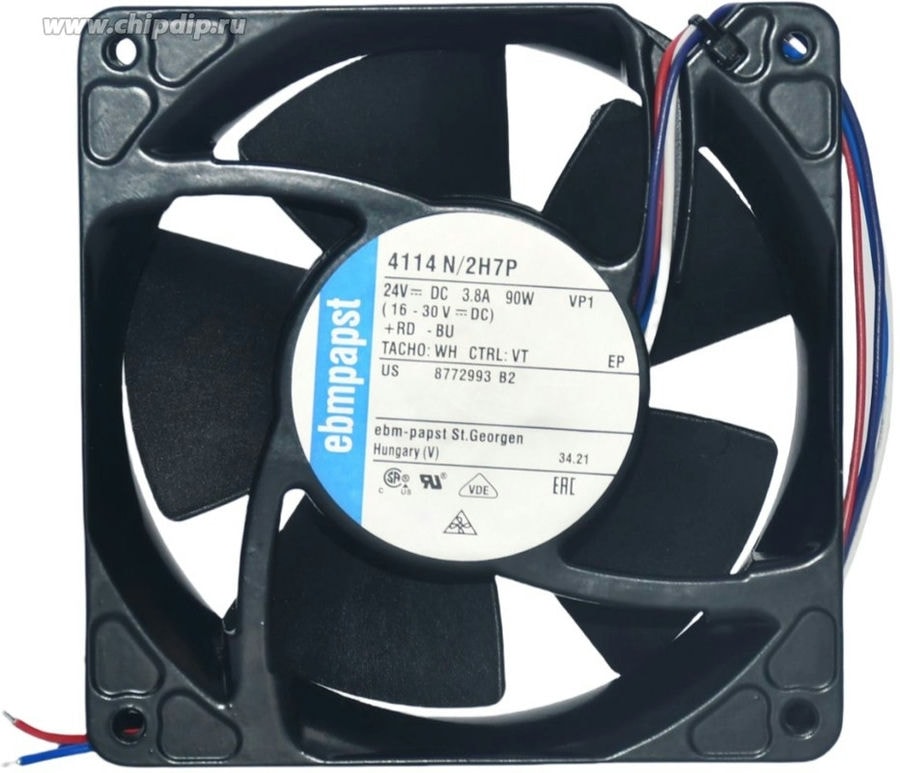

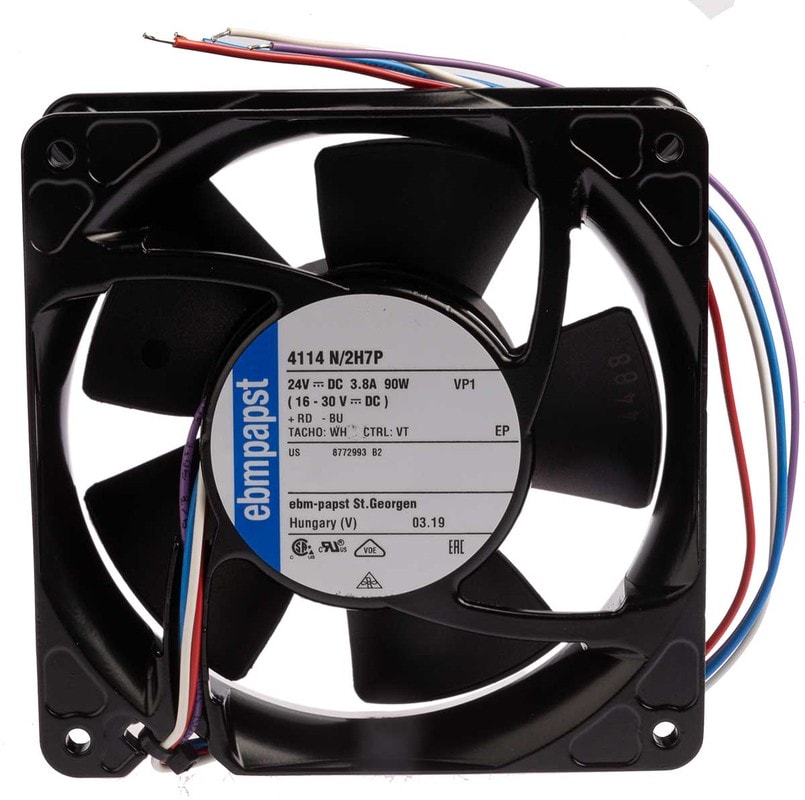

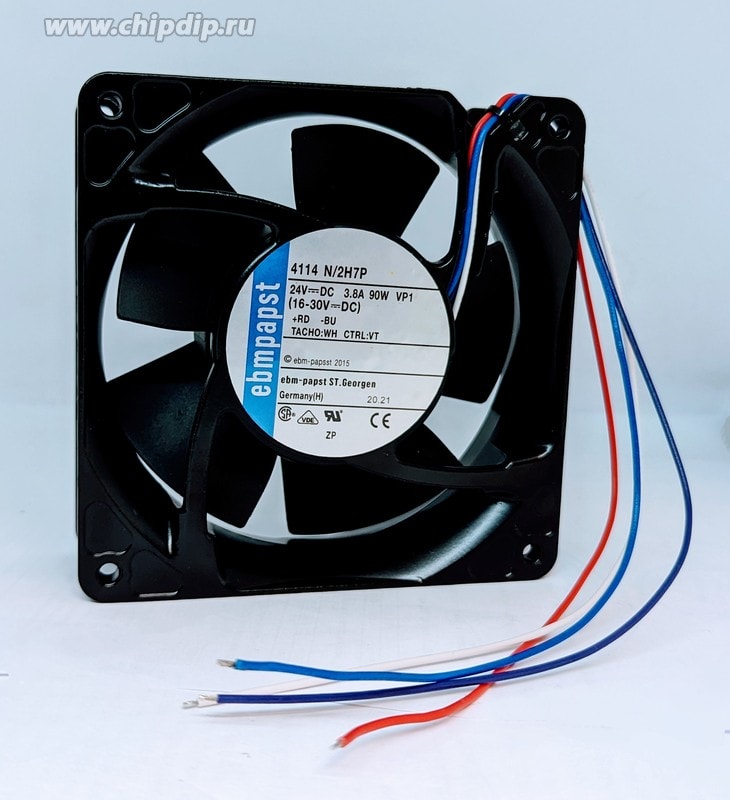

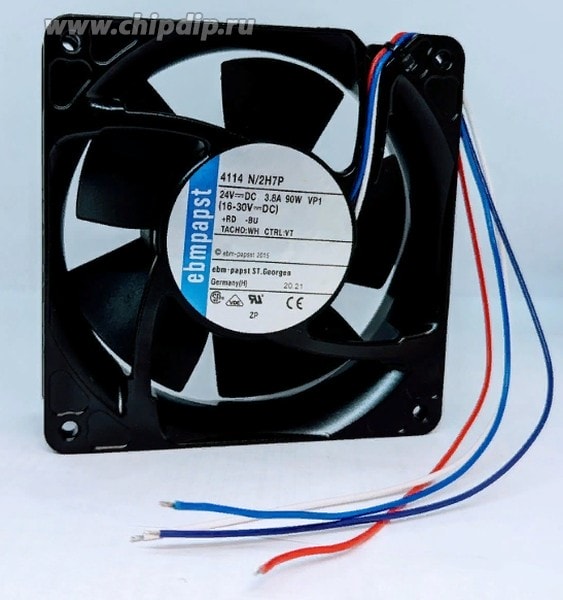

8017105745 Вентилятор Ebmpapst 4114N/2H7P 24v 90W 120×38 2pin Hirschmann
16200,00 ₽
Описание
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications.
| Вес, г | 425 |
| Air Flow | 500m³/h |
| Noise Level | 76dB |
| Series | 4100N |
| Special Features | Tachometer Output, PWM speed control |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Питание | 2pin |
| Factory Pack Quantity | 1 |
| ECCN | EAR99 |
| Features | Speed Signal, Open Collector Output |
| Airflow | 294 CFM(8.3 m3/min) |
| Current Type | DC |
| IP Rating | IP20 |
| Noise | 76 dBA |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 90 W |
| Termination Style | Wire Leads-4 |
| Type | Tubeaxial |
| Operating Temperature | -20 to 75 °C |
| Termination | Lead Wires |
| Width | 119mm |
| Category | DC Fan |
| COO | DE |
| Housing Material | Aluminum |
| Maximum Airflow | 294CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Power consumption | 90W |
| Rated voltage | 24 V |
| Sound pressure level | 76 db |
| speed | 9500 RPM |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 500 m³/h |
| Bearing Type | Ball |
| Tradename | S-Force |
| AC or DC Operation | DC |
| Fan Speed | 9500rpm |
| Sensor Type | PWM, Tachometer |
| Tachometer Signal | Yes |
| PWM Control Signal | Yes |
Детали
| Бренд | EBM-PAPST |
|---|
