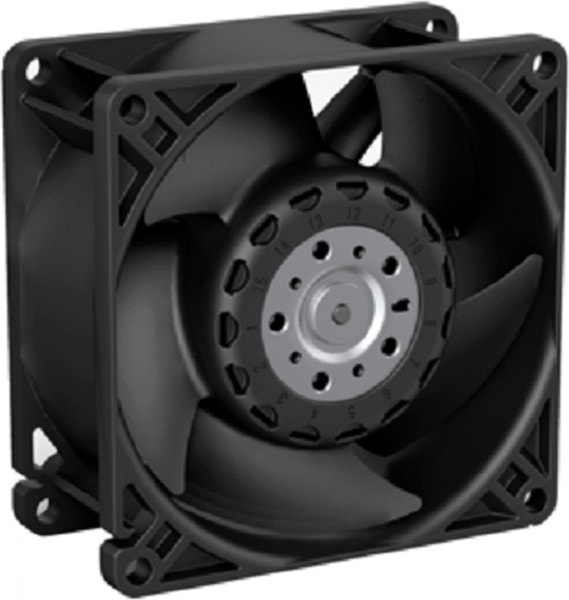

8017192897 AF80-00137 24V P/2 13.200, Axial Fan, 24 V dc, DC Operation, 178m³/h, 25W, 1.04A Max, 80 x 80 x 38mm Hirschmann
21030,00 ₽
Описание
The ebm-papst DC axial fan is a direct-current drive operated general fan motor with developed geometry and provides smooth rotation using three phase motor concept which generates less extra heat in the rotor and stator.
| Air Flow | 178m³/h |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Width | 80mm |
| Power consumption | 25W |
| Rated voltage | 24 V |
| Sound pressure level | 71 db |
| speed | 13200 1/min |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 178 m³/h |
| Производительность,м.куб./мин. | 10680 |
| AC or DC Operation | DC |
| Maximum Current | 1.04A |
| Sensor Type | PWM, Tachometer |
Детали
| Бренд | EBM-PAPST |
|---|
