Sanyo Denki

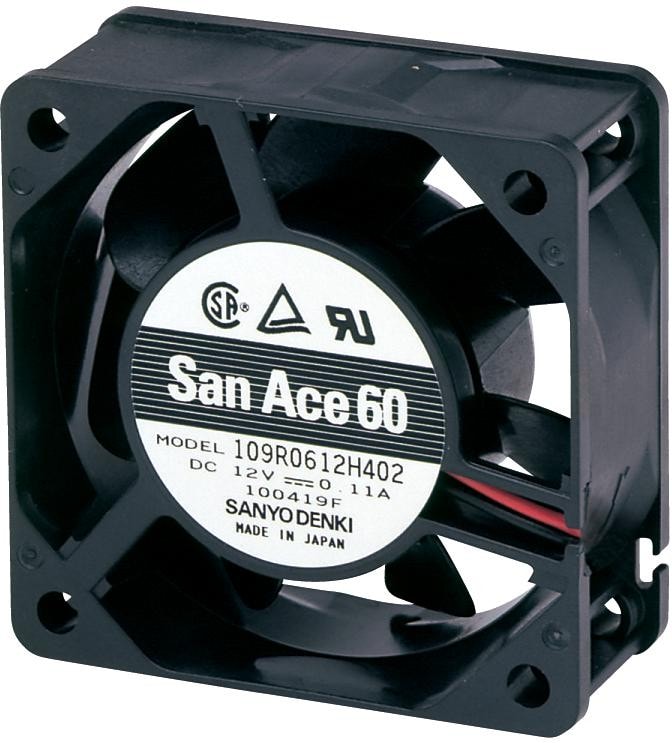

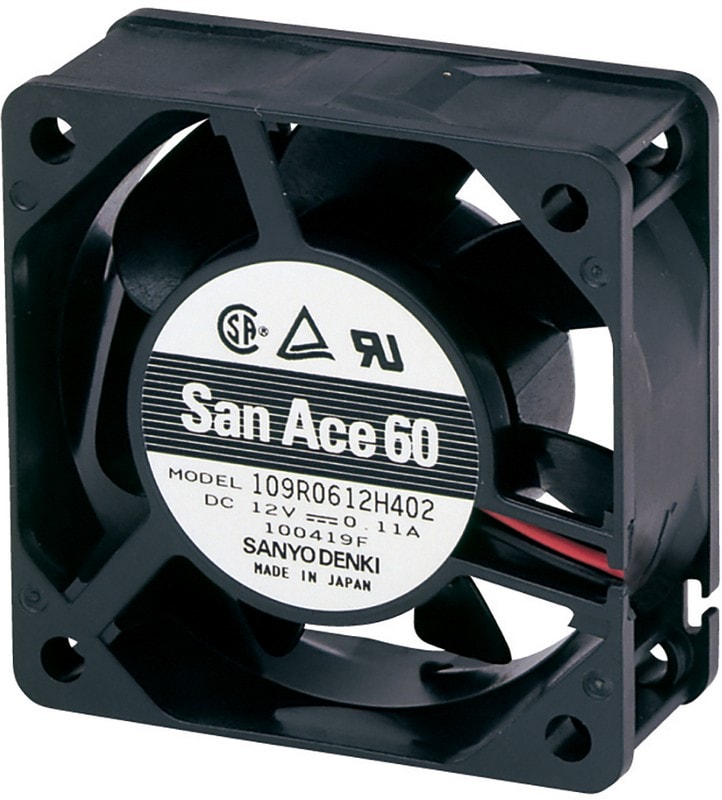

8017301934 109R0648H402, 109R Series Axial Fan, 48 V dc, DC Operation, 31.8m³/h, 1.92W, 40mA Max, 60 x 60 x 25mm Hirschmann
6790,00 ₽
Описание
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
| Потребляемая мощность, Вт | 1.92 |
| Air Flow | 31.8m³/h |
| Mounting | Flange Mount |
| Series | 9R Type |
| Special Features | High Speed |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 25 |
| Factory Pack Quantity | 80 |
| Packaging | Bulk |
| Product Category | DC Fan |
| ECCN | 4A994 |
| HTSUS | 8414596590 |
| RoHS Status | RoHS Compliant |
| Airflow | 20.5 CFM(0.58 m3/min) |
| Current Type | DC |
| Noise | 28 dBA |
| Operating Supply Voltage | 48 VDC |
| Termination Style | Wire Leads |
| Type | Axial |
| Width | 60mm |
| Housing Material | Plastic |
| speed | 3800 RPM |
| Pressure Type | 4 mmAq |
| Ток,А | 40 |
| Частота вращения,об./мин. | 3800 |
| Производительность,м.куб./мин. | 0.53 |
| Шум, дБA | 28 |
| Tradename | San Ace 60 |
| AC or DC Operation | DC |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Unconfirmed |
| PPAP | Unknown |
| Линейка продукции | San Ace 60 |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant with Exemption |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Pressure | 40.2Pa |
| Minimum Operating Temperature (°C) | -10 |
| Protection | Polarity |
| Shape | Square |
| Size (mm) | 60 X 60 X 25 |
| Поток воздуха — куб.фут/мин | 18.7фут³/мин |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | 2-жильные провода |
| Compliance | CSA; TUV; UL |
| Voltage Rating (V) | 48 |
| Power Rating (W) | 1.92 |
| Nominal Speed (r/min) | 3800 |
| Maximum Airflow (CFM) | 18.7 |
| Noise Level (dB) | 28 |
| Bearings | Ball |
| Line Current (A) | 0.04 |
| Operating Input Voltage Range (V) | 40 to 53 |
Детали
| Бренд | Sanyo Denki |
|---|
