Nidec

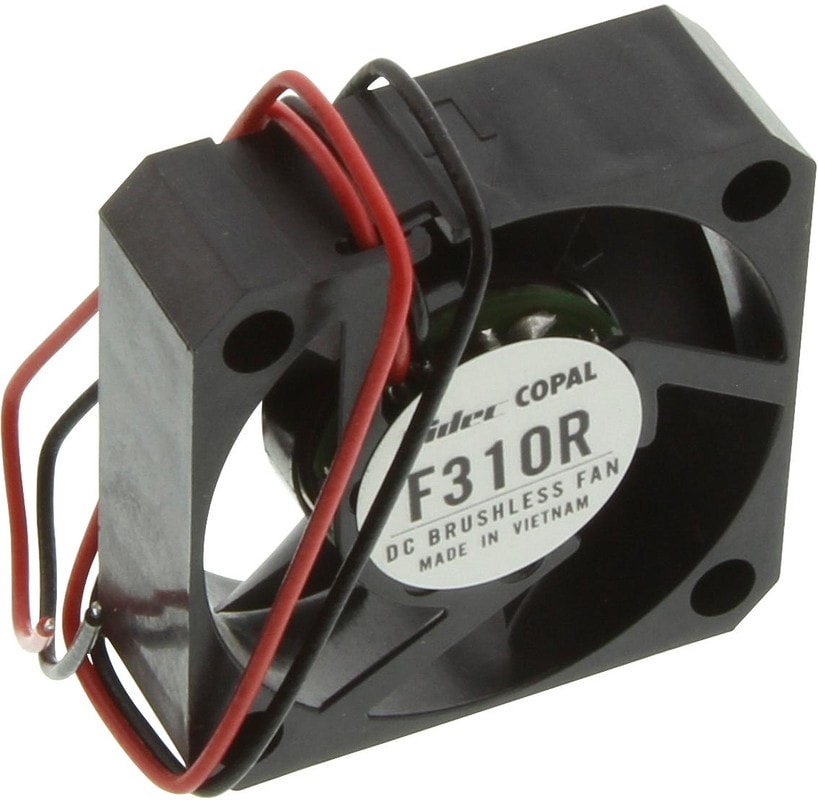

8019861844 F310R-12LLC, Fan Tubeaxial 12VDC Square — 30mm L x 30mm H Sleeve 2.1 CFM (0.059m³/min) 2 Wire Leads Hirschmann
2350,00 ₽
Описание
F Series Brushless DC Fans
Nidec Components F Series Brushless DC Fans are available in F16EA, F17FA, F17HA, F251R, F310R, F412R, F410T, and F614T variants. These brushless fans come in different dimensions and have low noise. The F series brushless DC fans operate from 3.1V to 13.8V voltage range and 0.2A to 0.12A rated current.
| Fan Type | Tubeaxial |
| Series | F310R |
| Размеры рамы,мм | 30×30 |
| Рабочее напряжение,В | 12 |
| Питание | 2pin |
| Brand | Nidec Components |
| Manufacturer | Nidec Copal Electronics |
| Packaging | Tray |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | — |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 50 |
| Termination Style | Wire Leads |
| Type | Brushless |
| Lifetime @ Temp. | — |
| Material — Blade | Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate(PBT) |
| Material — Frame | Acrylic Butadiene Styrene(ABS), Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 140В°F(-10 ~ 60В°C) |
| Size / Dimension | Square-30mm L x 30mm H |
| Termination | 2 Wire Leads |
| Weight | 0.018 lb(8.16g) |
| Width | 10.00mm |
| Housing Material | Polybutylene Terephthalate(PBT) |
| Ingress Protection | — |
| Static Pressure | 0.056 in H2O(13.9 Pa) |
| Current Rating | 0.025A |
| Part Status | Active |
| Линейка продукции | F310R |
| Voltage Range | 10.2 ~ 13.8VDC |
| Поток воздуха — куб.фут/мин | 2.118фут3/мин |
| Тип корпуса вентилятора | Square |
| Тип Подключения Питания | 2-жильные провода |
| Тип Тока | DC(Постоянный Ток) |
| Approvals | — |
Детали
| Бренд | Nidec |
|---|
