EBM-PAPST
8020747217 8214J/2H3, DC Fans DC Tubeaxial Fan, 80x38mm, 24VDC, 112CFM, Speed Signal/Open Collector Output Hirschmann
21280,00 ₽
Описание

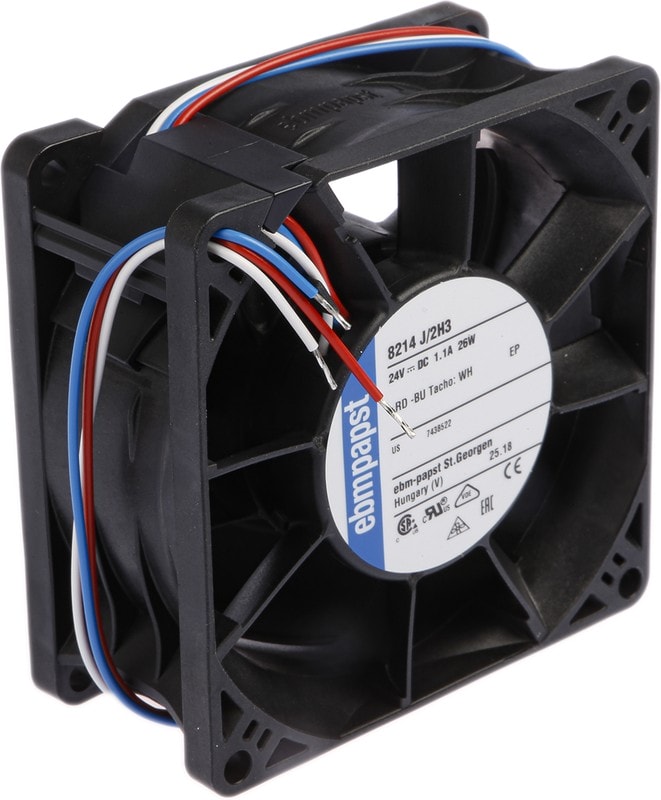

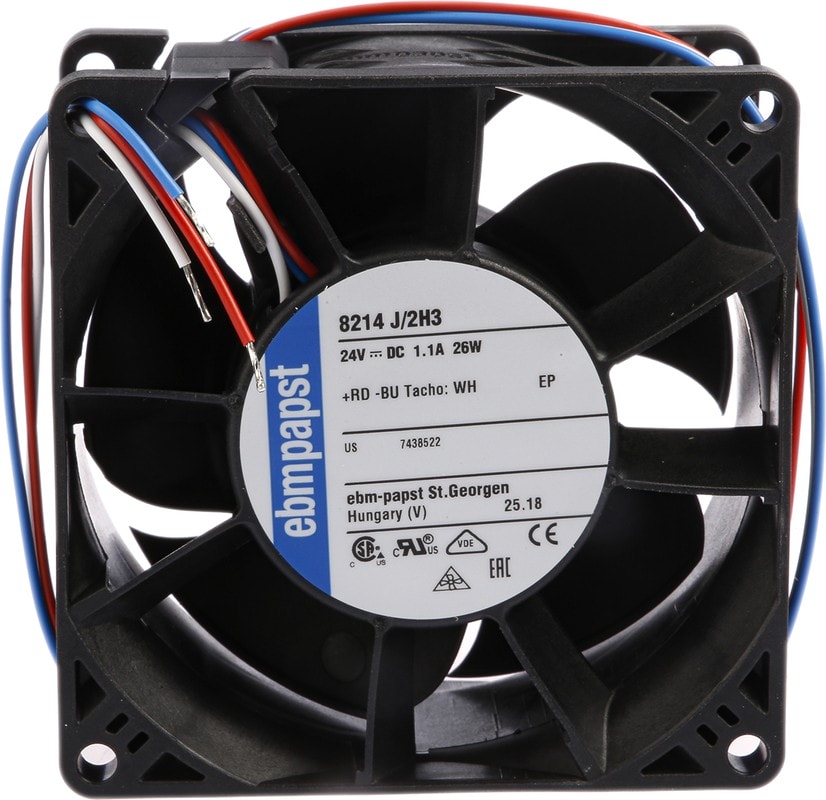

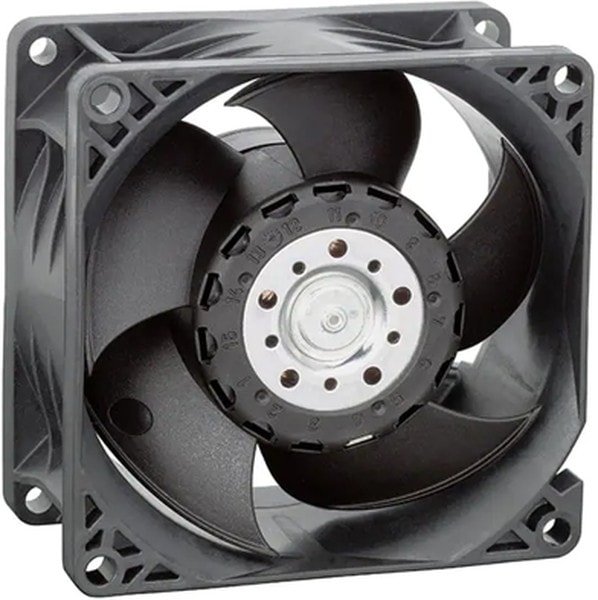

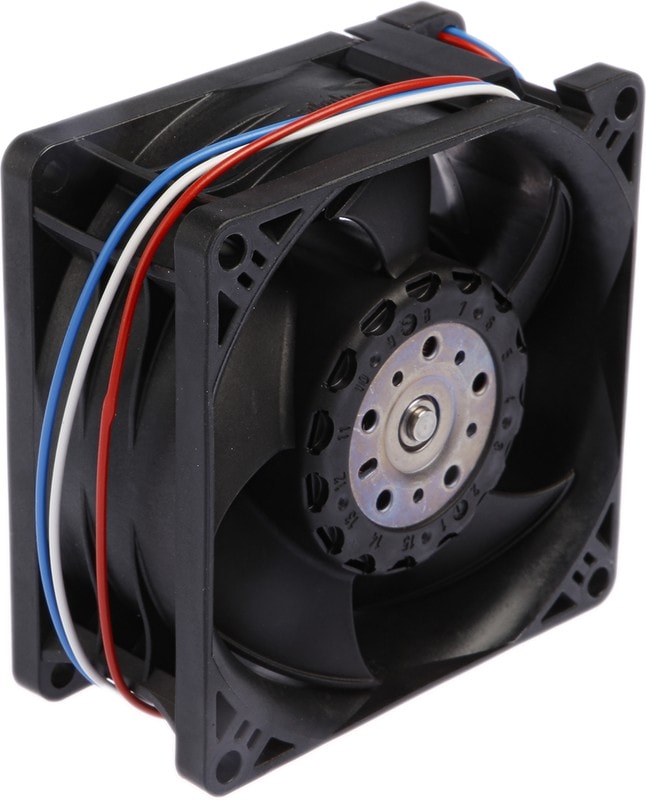

DC Axial fan, 8214 J/2H3, EBM-PAPST
The 8214 J/2H3 is a brushless DC axial fan that is made for applications that require high performance cooling and protection from harsh weather conditions in outdoor and extreme environments.
Features
- Electrical connection with individual stranded wires AWG 22, which are stripped and tinned
- Direction of rotation left, viewed on the rotor
- Material housing: glass fiber reinforced plastic (PBT)
- Protected against reverse polarity and blocking
| Вес, г | 200 |
| Air Flow | 190m³/h |
| Noise Level | 66dB |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Power consumption | 25 W |
| Rated voltage | 24 V |
| Sound pressure level | 66 db |
| speed | 12000 1/min |
| Type of bearing | ball bearing |
| Version | DC axial fan |
| Volume flow | 190 m³/h |
| Bearing Type | Ball |
| Производительность,м.куб./мин. | 112 |
| AC or DC Operation | DC |
| Fan Speed | 12000rpm |
| Sensor Type | Tachometer |
Детали
| Бренд | EBM-PAPST |
|---|
