Sanyo Denki

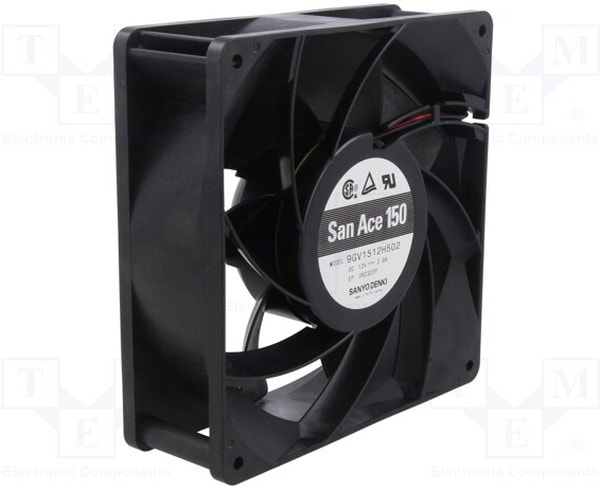

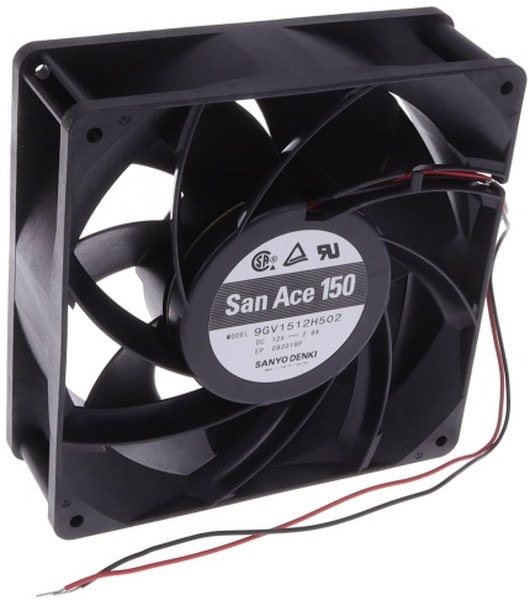

8022216049 9GV1512H502, Вентилятор: DC; осевой; 12ВDC; 150x150x50мм; 512,4куб.м/ч; 61дБА Hirschmann
19090,00 ₽
Описание
9GV Type Guide Vane Fans
Sanyo Denki 9GV-Type Guide Vane Fans utilize Guide Vane technology, which achieves industry-leading performance with high airflow and back pressure while reducing power. These axial or tubeaxial fans are available with a 12V DC, 24V DC, or 48V DC operating supply voltage. The 9GV-type fans feature a 13.1CFM to 1112CFM airflow range, a 3000RPM to 24.000RPM speed range, a 43dBA to 81dBA noise range, and a 2.52W to 600W power rating range. The models with a PWM control function also have a motor protection system that includes a current blocking function and reverse polarity protection.
| Вес, г | 463.9 |
| Потребляемая мощность, Вт | 34.8 |
| Air Flow | 300 CFM(8.40m³/min) |
| Fan Type | Tubeaxial |
| Series | 9GV Type |
| Тип подшипника | ball bearing |
| Размеры рамы,мм | 150×150 |
| Рабочее напряжение,В | 10.2 |
| Толщина,мм | 50 |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Locked Rotor Sensor |
| Current Type | DC |
| Factory Pack Quantity: Factory Pack Quantity | 14 |
| Noise | 61.0dB(A) |
| Termination Style | Wire Leads-2 |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -20…70°C |
| Termination | 2 Wire Leads |
| Width | 50.00mm |
| Enclosure material | plastic |
| Fan efficiency | 512.4m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x3 |
| Type of fan | DC |
| Housing Material | Plastic |
| Static Pressure | 0.84 in H2O(209.2 Pa) |
| Bearing Type | Ball |
| Current Rating | 2.9A |
| Part # Aliases | 2646324 |
| Pressure Type | 21 mmAq |
| Частота вращения,об./мин. | 3900 |
| Производительность,м.куб./мин. | 301 |
| Шум, дБA | 61 |
| Power (Watts) | 34.8 W |
| RPM | 3900 RPM |
| Voltage — Rated | 12VDC |
| Tradename | San Ace 150 |
| Fan dimensions | 150x150x50mm |
| Cable length | 0.3m |
| Compliance | CSA; TUV; UL |
| Rotational rate/speed | 3900rpm |
| Kind of material | flame retardant |
| Min. insulation resistance | 10MΩ |
Детали
| Бренд | Sanyo Denki |
|---|
