Sanyo Denki

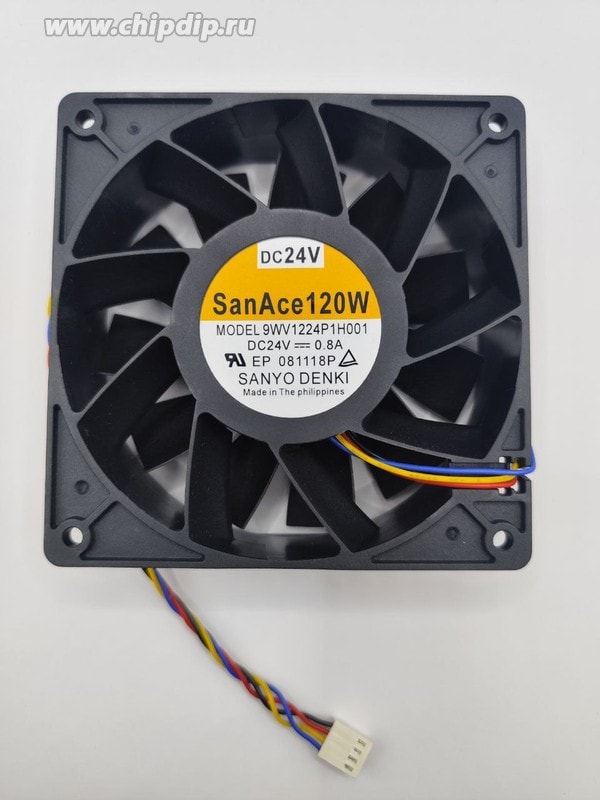

8025094468 9WV1224P1H001, 9WV Series Axial Fan, 24 V dc, DC Operation, 309.2m³/h, 19.2W, 800mA Max, IP68, 120 x 120 x 38mm Hirschmann
27430,00 ₽
Описание
Splash Proof Fan San Ace 120W
| Air Flow | 309.2m³/h |
| Fan Type | Tubeaxial |
| Noise Level | 58dB(A) |
| Series | 9WV Type |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 38 |
| Brand | Sanyo Denki |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| Features | Tachometer, PWM, Splash Proof |
| Airflow | 182 CFM(5.2 m3/min) |
| Current Type | DC |
| Depth | 38 mm |
| Factory Pack Quantity: Factory Pack Quantity | 21 |
| IP Rating | IP68 |
| Noise | 58 dBA |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 19.2 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 60000 Hrs 60В C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В F(-20 ~ 70В C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 4 Wire Leads |
| Weight | 0.97 lb(439.98g) |
| Width | 120mm |
| Housing Material | Aluminum |
| Power consumption | 19.2W |
| speed | 5200 RPM |
| Current Rating (Amps) | 0.800A |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.95 in H2O(237.0 Pa) |
| Bearing Type | Ball |
| Part # Aliases | 3573094 46T5916 |
| Pressure Type | 24 mmAq |
| Производительность,м.куб./мин. | 18552 |
| Power (Watts) | 19.20W |
| RPM | 5200 RPM |
| Voltage — Rated | 24VDC |
| Tradename | San Ace 120W |
| AC or DC Operation | DC |
| Maximum Current | 800mA |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Part Status | Active |
| Voltage Range | 20.4 ~ 27.6VDC |
| Compliance | CSA; TUV; UL |
| Approvals | CSA, TUV, UL |
Детали
| Бренд | Sanyo Denki |
|---|
