Sanyo Denki

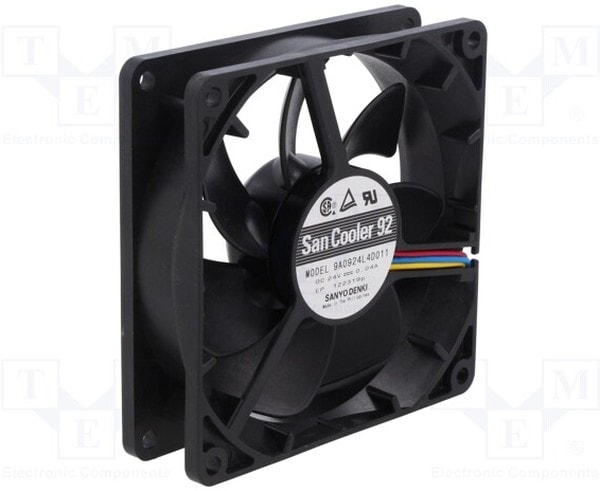

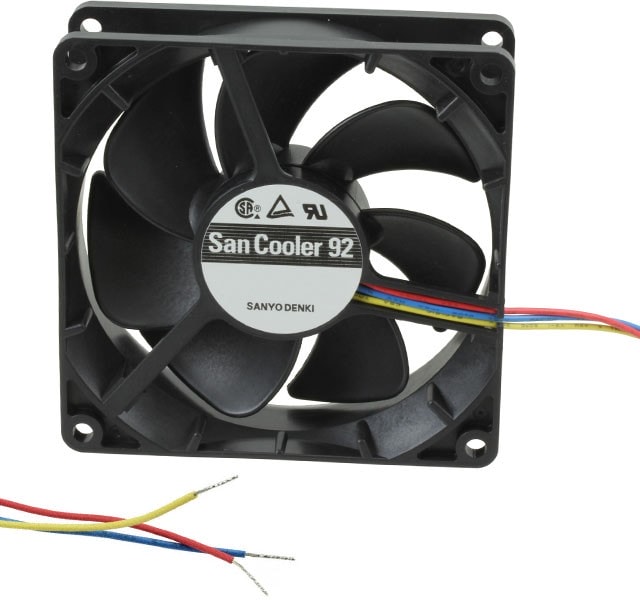

8026740976 9A0924L4D011, DC Fans Axial Fan, 92x92x25mm, 24VDC, 28.3CFM, 23dBA, Ribless, Ball, Wire, Lock Sensor Hirschmann
3450,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 28.2 CFM (0.790m³/min) 3 Wire Leads
| Потребляемая мощность, Вт | 0.96 |
| Air Flow | 28.2 CFM(0.790m³/min) |
| Fan Type | Tubeaxial |
| Тип подшипника | ball bearing |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Manufacturer | SANYO DENKI |
| Features | Locked Rotor Sensor |
| Noise | 23.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -20…70°C |
| Termination | 3 Wire Leads |
| Width | 25.00mm |
| Enclosure material | plastic |
| Fan efficiency | 48m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x3 |
| Type of fan | DC |
| Static Pressure | 0.054 in H2O(13.4 Pa) |
| Bearing Type | Ball |
| Current Rating | 40mA |
| Шум, дБA | 23 |
| Power (Watts) | 960 mW |
| RPM | 1750 RPM |
| Voltage — Rated | 24VDC |
| Fan dimensions | 92x92x25mm |
| Cable length | 0.3m |
| Rotational rate/speed | 1750rpm |
| Kind of material | flame retardant |
| Min. insulation resistance | 10MΩ |
Детали
| Бренд | Sanyo Denki |
|---|
