Delta Electonics

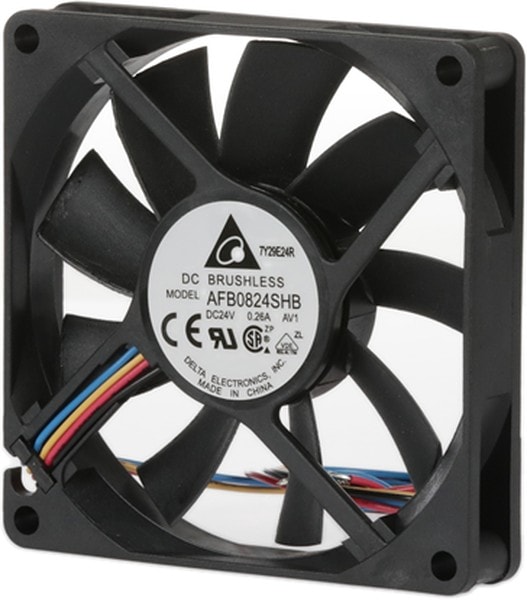

8029265112 AFB0824SHBAV1, DC Fans Fan, 80x15mm, 24VDC, 42.73CFM, 3.84W, Ball, 4Leads, Lock Rotor Sensor, Tach/PWM Hirschmann
2770,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 80mm L x 80mm H Ball 42.7 CFM (1.20m³/min) 4 Wire Leads
| Вес, г | 120 |
| Air Flow | 42.7 CFM(1.20m³/min) |
| Fan Type | Tubeaxial |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 15 |
| Питание | 4pin |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor(Tach) |
| Noise | 42.5dB(A) |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F(-10 ~ 60°C) |
| Termination | 4 Wire Leads |
| Width | 15.00mm |
| Static Pressure | 0.216 in H2O(53.8 Pa) |
| Bearing Type | Ball |
| Производительность,м.куб./мин. | 42.73 |
| Power (Watts) | 3.84 W |
| RPM | 4000 RPM |
| Voltage — Rated | 24VDC |
Детали
| Бренд | Delta Electonics |
|---|
