EBM-PAPST

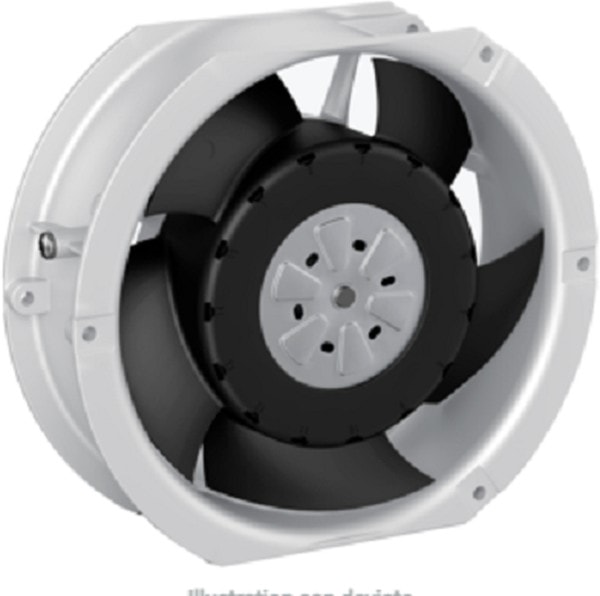

8030792169 AF172-000059 48V P/2 8.300, Axial Fan, 48 V dc, DC Operation, 650m³/h, 98W, 2.05A Max, 172 x 150 x 51mm Hirschmann
61120,00 ₽
Описание
The ebm-papst DC axial fan is a direct-current drive operated general fan motor with developed geometry and provides smooth rotation using three phase motor concept which generates less extra heat in the rotor and stator.
| Air Flow | 650m³/h |
| Supply Voltage | 48 V dc |
| Размеры рамы,мм | 172×150 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 51 |
| Width | 150mm |
| Power consumption | 98W |
| Производительность,м.куб./мин. | 39000 |
| AC or DC Operation | DC |
| Maximum Current | 2.05A |
| Sensor Type | PWM, Tachometer |
Детали
| Бренд | EBM-PAPST |
|---|
