Sanyo Denki

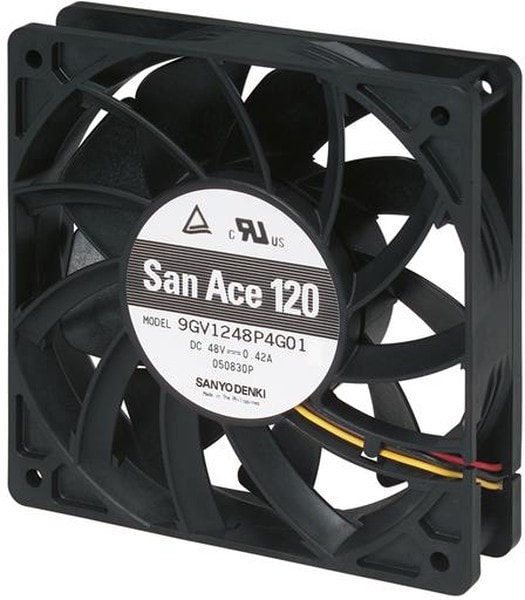

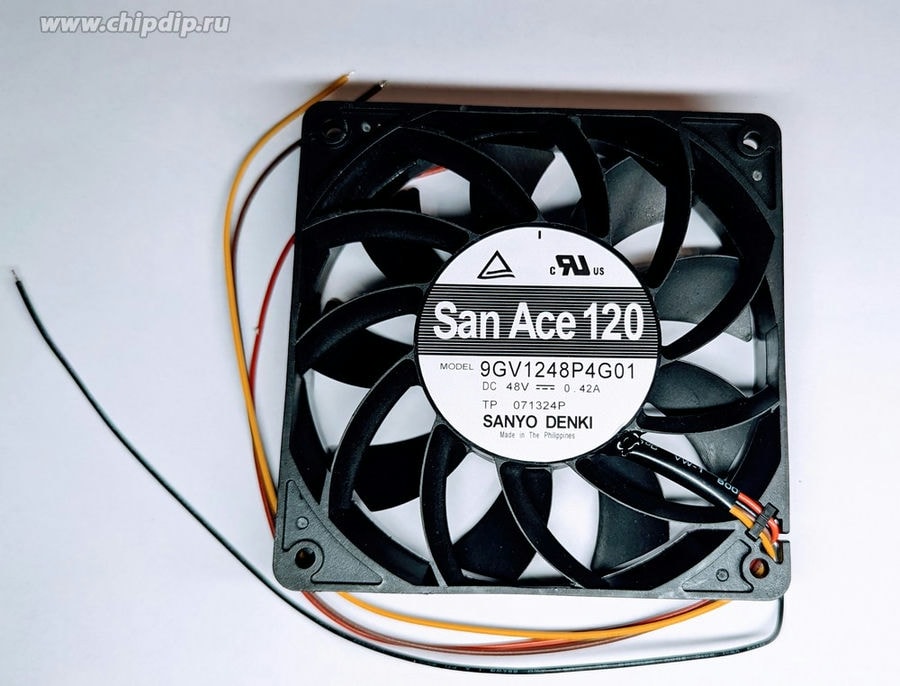

8031051905 Вентилятор Sanyo Denki San Ace 120 9GV1248P4G01 48V DC 0.42A 120X25 4pin Hirschmann
5570,00 ₽
Описание
San Ace Fans with PWM Control Function
Sanyo Denki San Ace Fans with Pulse Width Modulation (PWM) Control Function enables designers to externally control the speed of fans. This beneficial design feature varies the duty cycles of PWM input signals between the control and grounding terminals. The PWM control allows fans to operate optimally in response to the device's heat level, lowering the noise and power consumption of systems. Sanyo Denki San Ace Fans with PWM Control Function offer precise control and the ability to control multiple fans.
| Вес, г | 260 |
| Air Flow | 170.9 CFM(4.79m³/min) |
| Fan Type | Tubeaxial |
| Series | 9GV Type |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 48 |
| Толщина,мм | 25 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Factory Pack Quantity | 30 |
| Manufacturer | Sanyo Denki |
| Packaging | Bulk |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | 4A994 |
| HTSUS | 8414596590 |
| RoHS Status | RoHS Compliant |
| Features | Tachometer, PWM |
| Airflow | 168 CFM(4.8 m3/min) |
| Current Type | DC |
| Depth | 25 mm |
| Factory Pack Quantity: Factory Pack Quantity | 30 |
| Noise | 58 dBA |
| Operating Supply Voltage | 48 VDC |
| Power Rating | 20.16 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 25.40mm |
| Housing Material | Plastic |
| speed | 5100 RPM |
| Static Pressure | 0.09 in H2O(22.4 Pa) |
| Bearing Type | Ball |
| Part # Aliases | 2758054 |
| Pressure Type | 23 mmAq |
| Power (Watts) | 20.16 W |
| RPM | 5100 RPM |
| Voltage — Rated | 48VDC |
| Tradename | San Ace 120 |
| Compliance | CSA; TUV; UL |
Детали
| Бренд | Sanyo Denki |
|---|
