Sanyo Denki

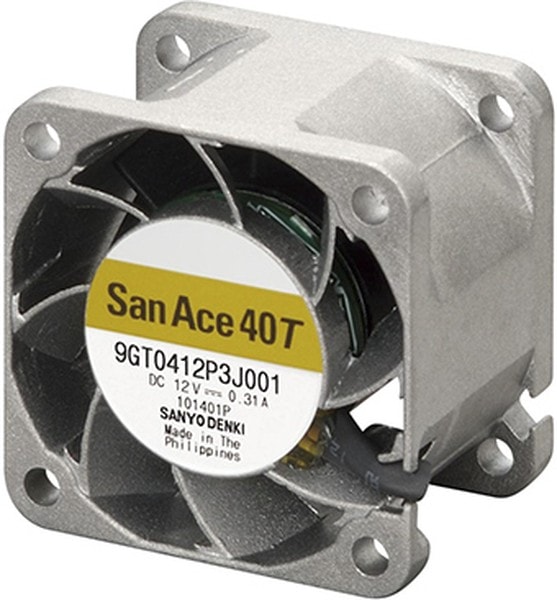

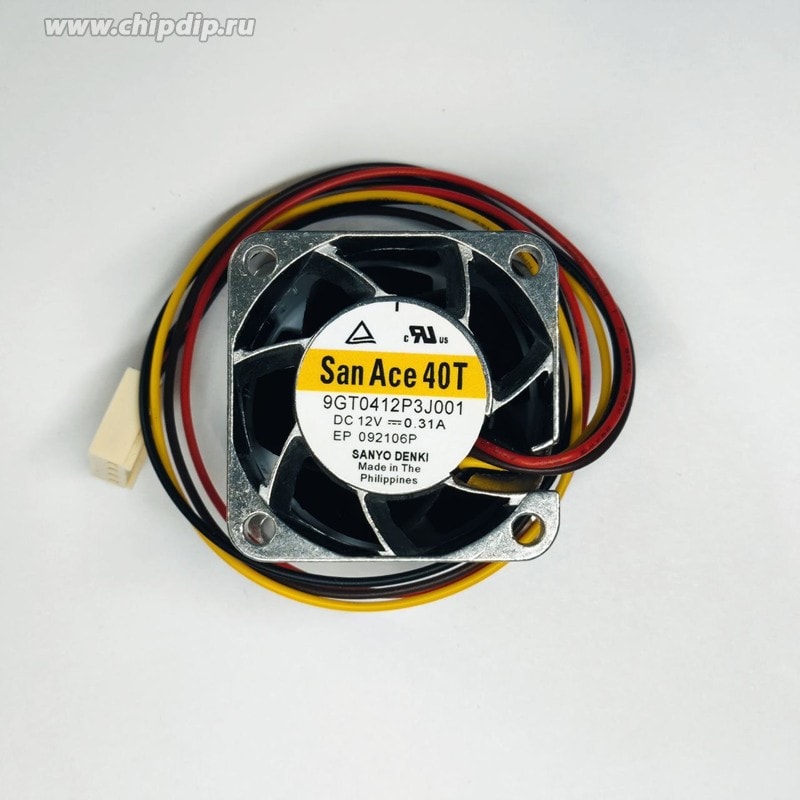

8031962916 Вентилятор Sanyo Denki San Ace 40T 9GT0412P3J001 12V DC 0.31A 40X28 4pin Hirschmann
5540,00 ₽
Описание
San Ace Fans with PWM Control Function
Sanyo Denki San Ace Fans with Pulse Width Modulation (PWM) Control Function enables designers to externally control the speed of fans. This beneficial design feature varies the duty cycles of PWM input signals between the control and grounding terminals. The PWM control allows fans to operate optimally in response to the device's heat level, lowering the noise and power consumption of systems. Sanyo Denki San Ace Fans with PWM Control Function offer precise control and the ability to control multiple fans.
| Вес, г | 58 |
| Потребляемая мощность, Вт | 3.7 |
| Air Flow | 0.52m³/min |
| Series | 9GT Type |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 28 |
| Питание | 4pin |
| Brand | Sanyo Denki |
| Factory Pack Quantity | 126 |
| Manufacturer | Sanyo Denki |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | 4A994 |
| HTSUS | 8414596590 |
| RoHS Status | RoHS Compliant |
| Features | Tachometer, PWM |
| Airflow | 18.4 CFM(0.52 m3/min) |
| Current Type | DC |
| Depth | 28 mm |
| Factory Pack Quantity: Factory Pack Quantity | 126 |
| Noise | 48 dBA |
| Operating Supply Voltage | 12 VDC |
| Power Rating | 3.72 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Width | 40mm |
| Housing Material | Aluminum |
| speed | 11700 RPM |
| Bearing Type | Ball |
| Pressure Type | 20 mmAq |
| Ток,А | 310 |
| Частота вращения,об./мин. | 11700 |
| Производительность,м.куб./мин. | 0.52 |
| Шум, дБA | 48 |
| Tradename | San Ace 40T |
| AC or DC Operation | DC |
| Sensor Type | PWM |
| Termination Type | Lead Wire |
Детали
| Бренд | Sanyo Denki |
|---|
