Sunon

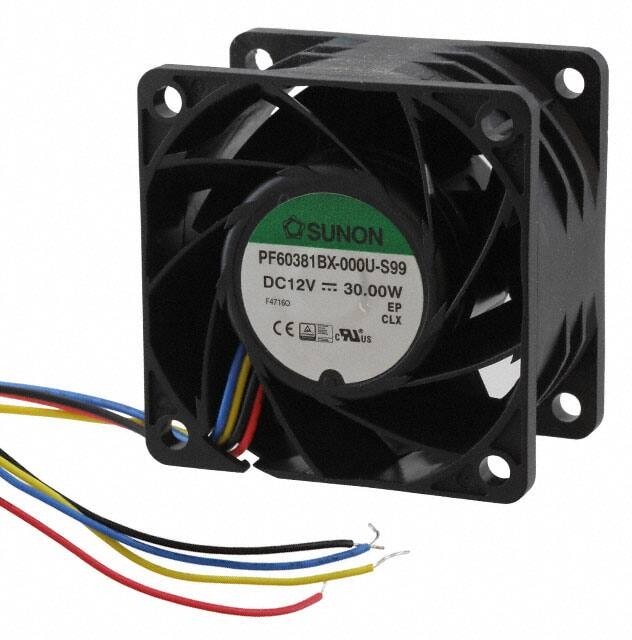

8033540555 PF60381BX-000U-S99, Вентилятор осевой 12В, 2.5А, подшипник качения, 30Вт Hirschmann
6050,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 75.2 CFM (2.11mВі/min) 4 Wire Leads
| Вес, г | 130 |
| Fan Type | Tubeaxial |
| Series | PF-> |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart, PWM Control, Speed Sensor(Tach) |
| Noise | 67.6dB(A) |
| Approval Agency | CE, CUR, TUV, UL |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 4 Wire Leads |
| Weight | 0.28 lb(127.01 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 2.50A |
| Static Pressure | 3.28 in H2O(817.0 Pa) |
| Video File | Sunon DR MaglevSunon Demonstrates the Autorestart |
| Voltage Range | 10.2 ~ 13.2VDC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
