Sunon

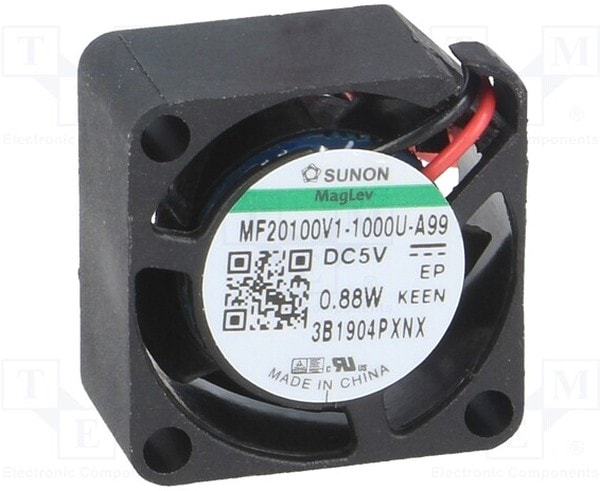

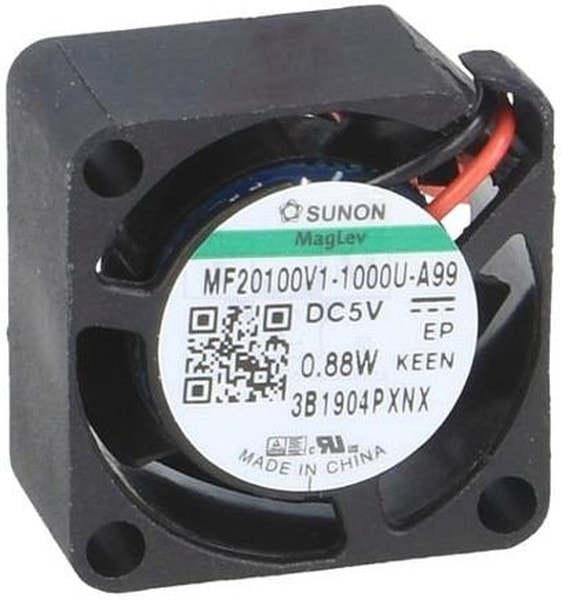

8033919732 MF20100V1-1000U-A99, Fan Tubeaxial 5VDC Square — 20mm L x 20mm H Vapo-Bearing™ 1.9 CFM (0.053m³/min) 2 Wire Leads Hirschmann
2500,00 ₽
Описание
The Sunon MagLev motor fan has precise vapo bearing system. It also has counter clockwise rotation viewed from front of the fan blade.
| Тип | осевой |
| Air Flow | 1.9cfm |
| Noise Level | 25dBA |
| Supply Voltage | 5 V dc |
| Размеры рамы,мм | 20×20 |
| Рабочее напряжение,В | 5 |
| Питание | 2pin |
| Manufacturer | SUNON |
| IP Rating | IP20 |
| Operating Temperature | -10…70°C |
| Width | 20mm |
| Enclosure material | thermoplastic |
| Fan efficiency | 3.22m3/h |
| Impeller material | thermoplastic |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | DC |
| Power consumption | 530mW |
| Static Pressure | 7.36mm H2O |
| Current Rating | 106mA |
| AC or DC Operation | DC |
| Maximum Current | 122mA |
| Fan dimensions | 20x20x10mm |
| Cable length | 150mm |
| Flammability rating | UL94V-0 |
| Wire size | 28AWG |
| Fan motor | brushless DC |
| Insulation class | A |
| Kind of Bearing | Vapo |
| Rotational rate/speed | 16500rpm |
| Operating voltage | 2.8…6V |
Детали
| Бренд | Sunon |
|---|
