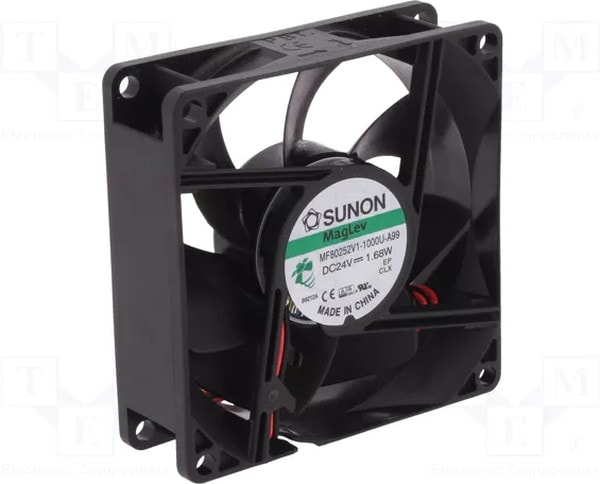

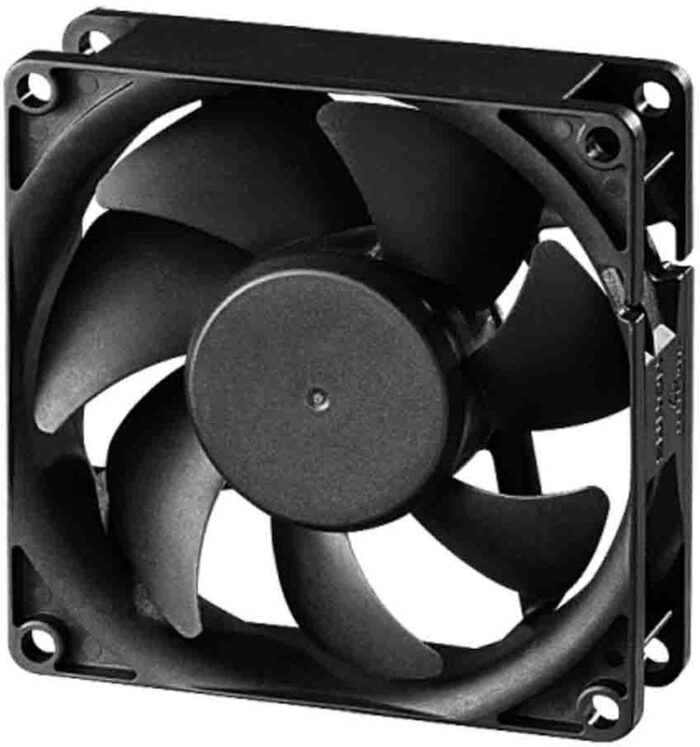

8043202701 Вентилятор SUNON MF80252V1-1000U-A99 24V 1.68W 80×25 2pin Hirschmann
1350,00 ₽
Описание
The Sunon MagLev motor fan has precise vapo bearing system. It also has counter clockwise rotation viewed from front of the fan blade.
| Вес, г | 90 |
| Air Flow | 41cfm |
| Fan Type | Tubeaxial |
| Noise Level | 33 dB |
| Series | MagLevВ® MF-> |
| Special Features | High Speed |
| Supply Voltage | 24 V dc |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| IP Rating | IP20 |
| Noise | 33.0dB(A) |
| Power Rating | 1.56 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.167 lb(75.75 g) |
| Width | 80mm |
| Enclosure material | thermoplastic |
| Fan efficiency | 69.29m3/h |
| Impeller material | thermoplastic |
| Kind of fan | axial |
| Leads | lead x2 |
| Type of fan | DC |
| Category | DC Fan |
| COO | PH |
| Housing Material | N/A |
| Maximum Airflow | 41 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 30 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Power consumption | 1.56W |
| Current Rating (Amps) | 0.065A |
| Static Pressure | 0.18 in H2O(44.8 Pa) |
| Current Rating | 65mA |
| Производительность,м.куб./мин. | 1.15 |
| Шум, дБA | 33 |
| AC or DC Operation | DC |
| Maximum Current | 75mA |
| Cable length | 0.315m |
| Video File | Sunon Demonstrates the Autorestart and Reverse Air |
| Flammability rating | UL94V-0 |
| Wire size | 24AWG |
| Voltage Range | 8 ~ 27.6VDC |
| Fan motor | brushless DC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
| Kind of Bearing | Vapo |
| Rotational rate/speed | 3200rpm |
| Min. insulation resistance | 10MΩ |
| Operating voltage | 8…27.6V DC |
| Additional functions | autorestart |
Детали
| Бренд | Sunon |
|---|
