EBM-PAPST

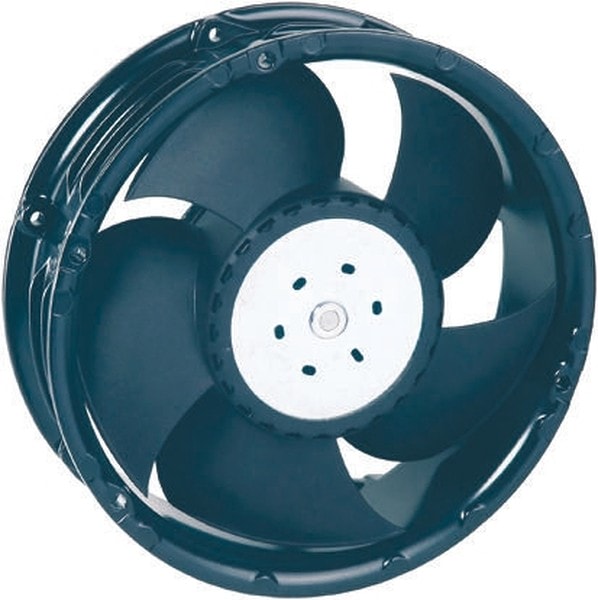

8045210548 Вентилятор Ebmpapst 6318/2TDHP 48V 850mA 172×51 4pin Hirschmann
33480,00 ₽
Описание
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications.
| Вес, г | 875 |
| Air Flow | 600m³/h |
| Noise Level | 60dB |
| Special Features | Tachometer Output, External Temperature Sensor, PWM speed control |
| Supply Voltage | 48 V dc |
| Brand | ebm-papst |
| Factory Pack Quantity | 1 |
| Manufacturer | ebm-papst |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | Speed Signal, Open Collector Output |
| Airflow | 353 CFM(10 m3/min) |
| Current Type | DC |
| Depth | 51 mm |
| IP Rating | IP20 |
| Noise | 64 dBA |
| Operating Supply Voltage | 48 VDC |
| Power Rating | 40 W |
| Type | Tubeaxial |
| Operating Temperature | -20 to 70 °C |
| Termination | Lead Wires |
| Category | DC Fan |
| COO | DE |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 353 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 48 V |
| Единица измерения | шт |
| Power consumption | 40W |
| Bearing Type | Ball |
| AC or DC Operation | DC |
| Fan Speed | 5500rpm |
| Sensor Type | PWM, Tachometer |
| Tachometer Signal | Yes |
| PWM Control Signal | Yes |
Детали
| Бренд | EBM-PAPST |
|---|
