Sanyo Denki

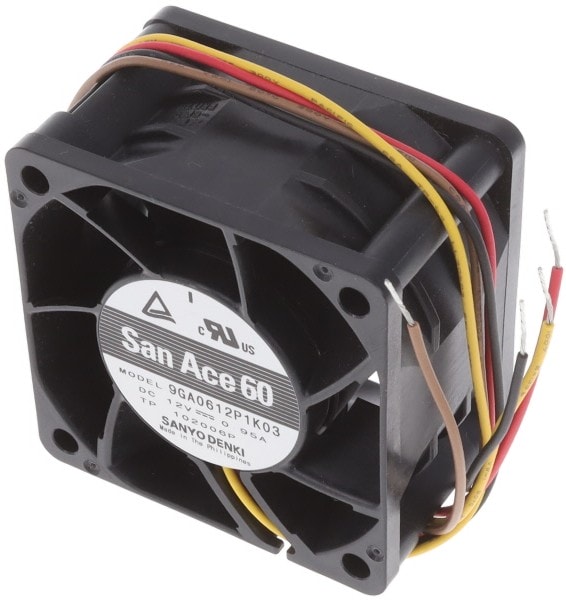

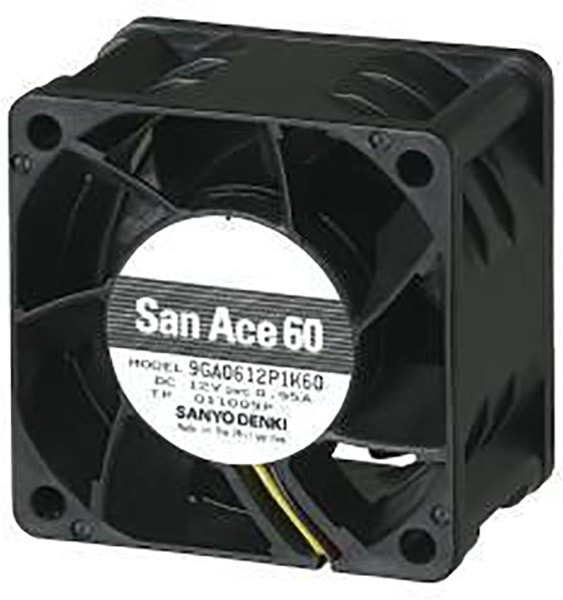

8049621407 Вентилятор Sanyo Denki San Ace 60 9GA0612P1K03 12V DC 0.95A 60X38 4pin Hirschmann
3180,00 ₽
Описание
Our DC cooling fans have features such as high airflow, high reliability, and low noise. They can be used in a wide-ranging applications including servers and ICT equipment.
| Вес, г | 130 |
| Air Flow | 90m³/h |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 59dB(A) |
| Special Features | Low Noise|Low Power Consumption |
| Supply Voltage | 12 V dc |
| Product Category | DC Fan |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 59.0dB(A) |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 140°F(-20 ~ 60°C) |
| Termination | 4 Wire Leads |
| Width | 60mm |
| Power consumption | 11.4W |
| Static Pressure | 2.41 in H2O(600.0 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 11.4 W |
| RPM | 14800 RPM |
| Voltage — Rated | 12VDC |
| AC or DC Operation | DC |
| Maximum Current | 950mA |
| Sensor Type | Pulse |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 2.4inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Locking|Polarity |
| Shape | Square |
| Size (mm) | 60 X 60 X 38 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 11.4 |
| Nominal Speed (r/min) | 14800 |
| Maximum Airflow (CFM) | 53 |
| Noise Level (dB) | 59 |
| Bearings | Ball |
| Line Current (A) | 0.95 |
| Operating Input Voltage Range (V) | 10.8 to 13.2 |
Детали
| Бренд | Sanyo Denki |
|---|
