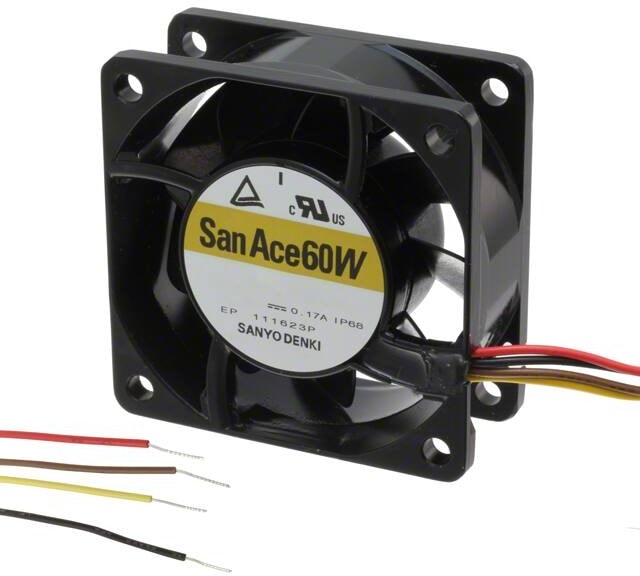

8049705596 Вентилятор Sanyo Denki San Ace 60W 9WL0624P4H001 24V DC 0.08A 60X25 4pin Hirschmann
5270,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 60mm L x 60mm H Ball 27.5 CFM (0.770mВі/min) 4 Wire Leads
| Вес, г | 120 |
| Fan Type | Tubeaxial |
| Series | San Ace 60W-> |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | PWM Control, Speed Sensor(Tach) |
| Noise | 36.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Lifetime @ Temp. | 180000 Hrs @ 60В°C |
| Material — Blade | Plastic |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 158В°F(-20 ~ 70В°C) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 4 Wire Leads |
| Weight | 0.243 lb(110.22 g) |
| Width | 25.00mm |
| Current Rating (Amps) | 0.080A |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.39 in H2O(97.1 Pa) |
| Video File | Summary of SanAce Cooling SystemsSanAce Server Coo |
| Voltage Range | 21.6 ~ 26.4VDC |
Детали
| Бренд | Sanyo Denki |
|---|
