Sanyo Denki

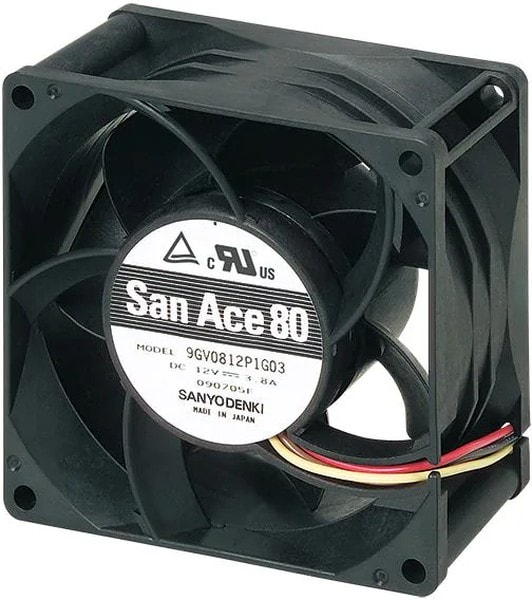

8049770488 Вентилятор Sanyo Denki San Ace 80 9GV0824P1G03 24V DC 1.6A 80X38 4pin Hirschmann
5130,00 ₽
Описание
San Ace Fans with PWM Control Function Sanyo Denki San Ace Fans with Pulse Width Modulation (PWM) Control Function enables designers to externally control the speed of fans. This beneficial design feature varies the duty cycles of PWM input signals between the control and grounding terminals. The PWM control allows fans to operate optimally in response to the device's heat level, lowering the noise and power consumption of systems. Sanyo Denki San Ace Fans with PWM Control Function offer precise control and the ability to control multiple fans.
| Вес, г | 220 |
| Air Flow | 138 CFM(3.86m³/min) |
| Fan Type | Tubeaxial |
| Brand | Sanyo Denki |
| Factory Pack Quantity | 27 |
| Manufacturer | Sanyo Denki |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor(Tach) |
| Airflow | 138 CFM(3.9 m3/min) |
| Current Type | DC |
| Depth | 38 mm |
| Noise | 65.0dB(A) |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 38.4 W |
| Termination Style | Wire Leads-4 |
| Type | Axial |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 4 Wire Leads |
| Width | 38.00mm |
| Housing Material | Plastic |
| RoHS | Yes |
| Supplier Standard Pack | 27 |
| Единица измерения | шт |
| speed | 10200 RPM |
| Static Pressure | 1.97 in H2O(490.7 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 38.4 W |
| RPM | 10200 RPM |
| Voltage — Rated | 24VDC |
Детали
| Бренд | Sanyo Denki |
|---|
