Delta Electonics

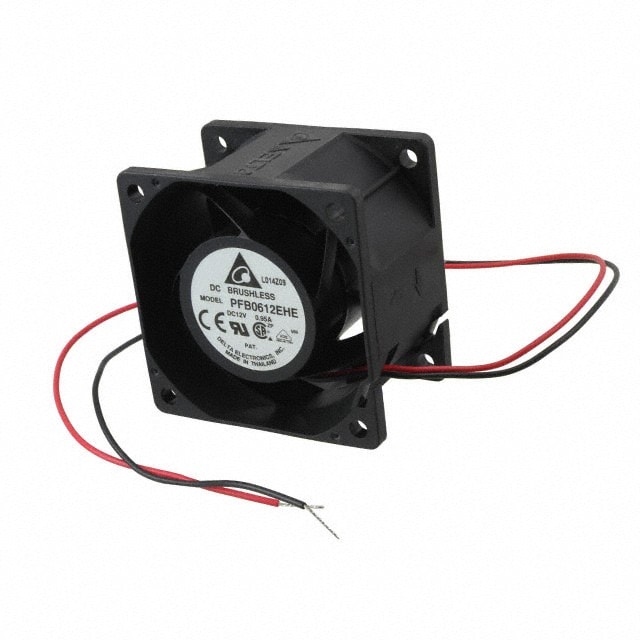

8055339351 Вентилятор Delta Electronics PFB0612EHE 12v 0.63A 60X38 3pin () Hirschmann
2160,00 ₽
Описание
DC Fans DC Tubeaxial Fan, 60x38mm, 12VDC, Ball Bearing, Wire Leads, Locked Rotor Sensor
| Вес, г | 80 |
| Air Flow | 50.4 CFM(1.41m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Noise | 54.0dB(A) |
| Type | DC Fan |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F(-10 ~ 60°C) |
| Termination | Lead Wire |
| Width | 38.00mm |
| Housing Material | Plastic |
| Static Pressure | 1.203 in H2O(299.7 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 7.56 W |
| RPM | 9000 RPM |
| Voltage — Rated | 12VDC |
| Product Height (mm) | 38(mm) |
| Product Length (mm) | 60(mm) |
| Product Diameter (mm) | Not Required(mm) |
| Operating Frequency | Not Required(Hz) |
| Operating Input Voltage Range | 7 TO 13.2 |
| Mounting Style | Flange |
| Fan Rotation | Clockwise |
| Line Current | 0.63(A) |
| Rad Hardened | No |
| Speed (Nominal) | 9000(rpm) |
Детали
| Бренд | Delta Electonics |
|---|
