Mechatronics

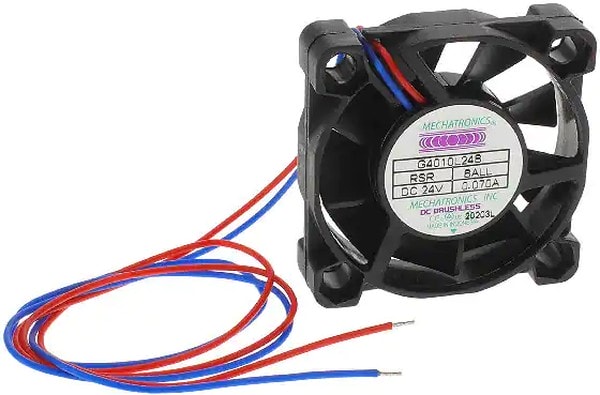

8005915377 G4010L24B-RSR, Fan Tubeaxial 24VDC Square — 40mm L x 40mm H Ball 6.0 CFM (0.168m³/min) 2 Wire Leads Hirschmann
2590,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 40mm L x 40mm H Ball 6.0 CFM (0.168mВі/min) 2 Wire Leads
| Вес, г | 6 |
| Fan Type | Tubeaxial |
| Noise Level | 22 dB |
| Series | G4010-> |
| Special Features | Tachometer1363 |
| Тип подшипника | Ball |
| Размеры рамы,мм | 40×40 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 10 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 22.0dB(A) |
| Power Rating | N/A |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | -10 to 70 °C |
| Size / Dimension | Square-40mm L x 40mm H |
| Termination | 2 Wire Leads |
| Weight | 0.026 lb(11.79 g) |
| Width | 10.30mm |
| Category | DC Fan1342 |
| COO | ID |
| Housing Material | Polybutylene Terephthalate1345 |
| Maximum Airflow | 6 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.070A |
| Static Pressure | 0.11 in H2O(27.4 Pa) |
| Частота вращения,об./мин. | 5000 |
| Производительность,м.куб./мин. | 6 |
Детали
| Бренд | Mechatronics |
|---|
