EBM-PAPST

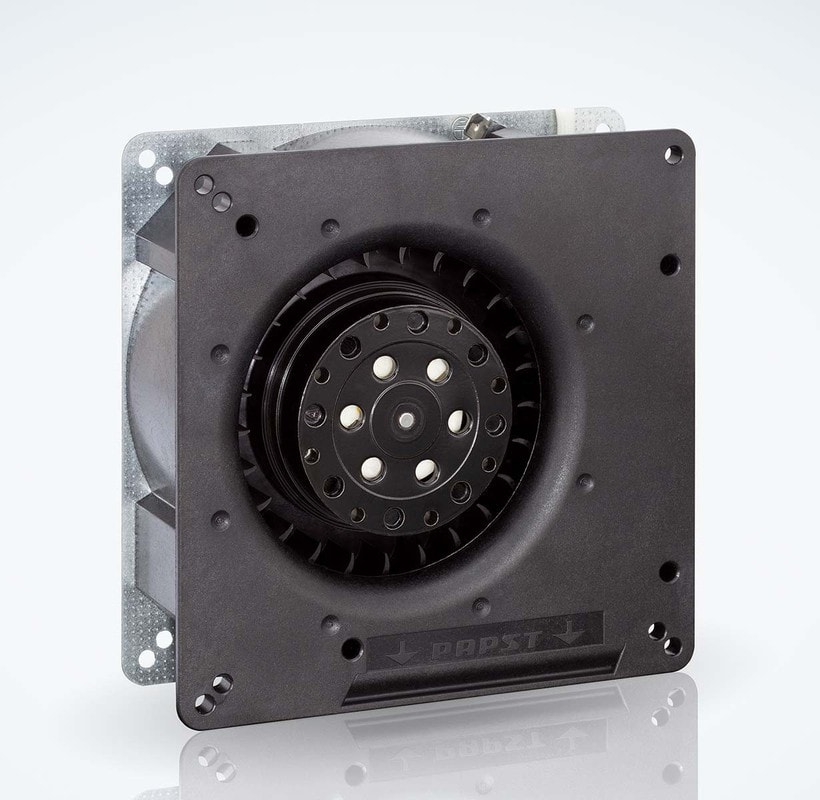

8009483311 RG90-18/56, RG 90 N Series Centrifugal Fan, 230 V ac, 54m³/h, AC Operation, 135 x 135 x 38mm Hirschmann
19180,00 ₽
Описание
The ebm-papst 230VDC centrifugal compact fan is provided with a speed signal, ball bearing and wire leaded power connection.
| Вес, г | 576 |
| Noise Level | N/A |
| Series | RG 90 N |
| Special Features | N/A |
| ECCN | EAR99 |
| IP Rating | IP20 |
| Power Rating | 22 W |
| Operating Temperature | -30 to 60 °C |
| Termination | Lead Wires |
| Width | 135mm |
| Category | AC Blower |
| COO | CN |
| Housing Material | Plastic |
| Maximum Airflow | 31.8 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Rated voltage | 230 V |
| Sound pressure level | 58 db |
| speed | 2200 1/min |
| Type of bearing | ball bearing |
| Volume flow | 54 m³/h |
| Blower Type | Centrifugal |
| AC or DC Operation | AC |
| Direction of Curve | Radial |
| Mounting hole diameter | 4.3mm |
| Horizontal Hole Spacing | 122mm |
| Mounting Hole Spacing | 122x122mm |
| Vertical Hole Spacing | 122mm |
| Termination Type | Lead Wire |
Детали
| Бренд | EBM-PAPST |
|---|
