EBM-PAPST

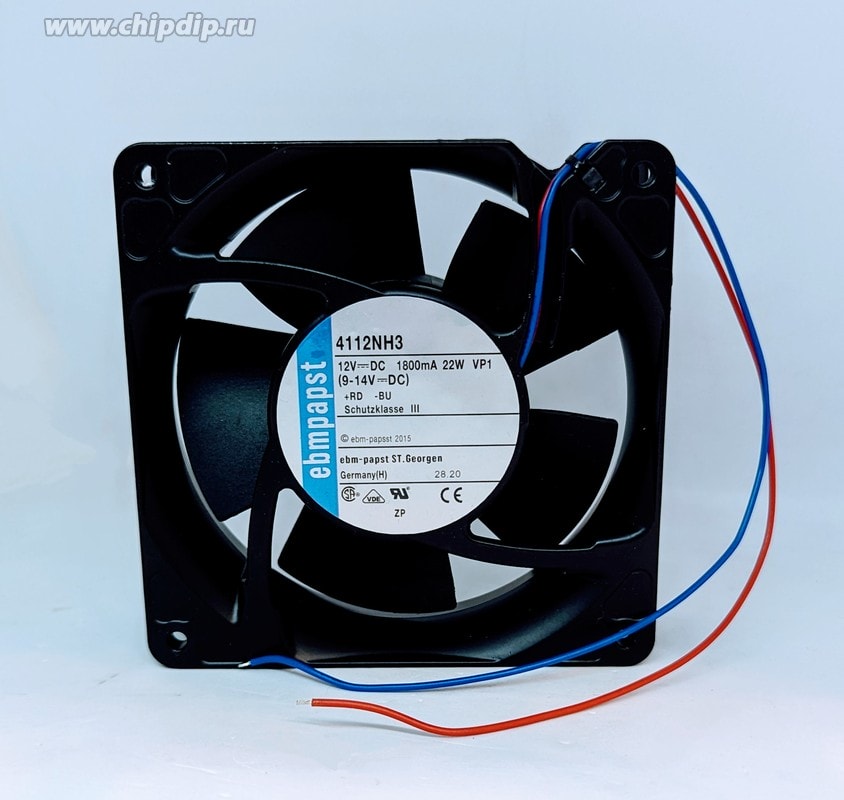

8021965939 Вентилятор Ebmpapst 4112NH3 DC 12V 1800mA 22W 120×38 2pin Hirschmann
13910,00 ₽
Описание
The 4112NH3 is a 12VDC Compact Axial Fan with a ball bearing and glass-fiber reinforced PA plastic impeller. This 4100 N series DC fan comes with a die-cast aluminum housing, UL1007 TR 64 stripped and tin-plated 22AWG lead cable. The motor is protection against reverse polarity and blocked rotor. The direction of rotation is clock wise direction viewed toward rotor. The air intake over struts and the housing with grounding lug for screw M4 x 8 (Torx). The axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
| Вес, г | 390 |
| Noise Level | 65 dB |
| Special Features | None |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| Питание | 2pin |
| ECCN | EAR99 |
| Power Rating | 19.5 W |
| Operating Temperature | -20 to 65 °C |
| Termination | Lead Wires |
| Category | DC Fan |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 182CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Разъём питания, Pin | 2pin |
Детали
| Бренд | EBM-PAPST |
|---|
