Orion Fans

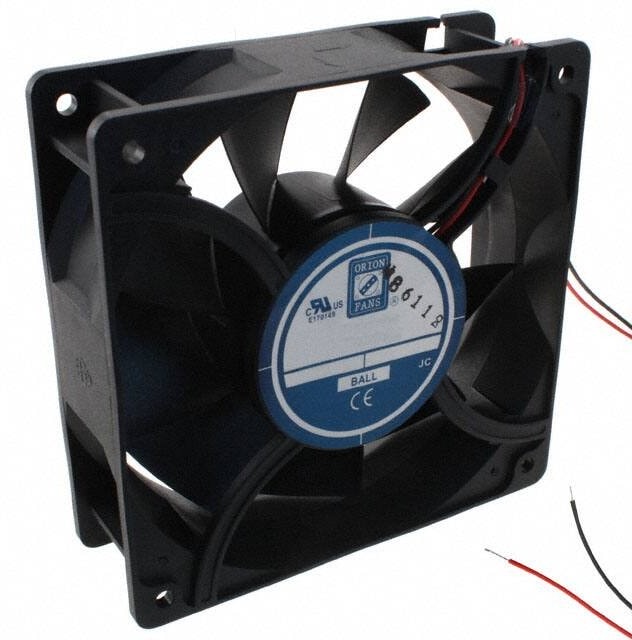

8005183979 OD1238-12LBXC, DC Fans DC Fan, High Performance, 120x120x38mm, 12VDC, 150CFM, 52dBA, Ball, 2xWire 24AWG Hirschmann
5230,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 120mm L x 120mm H Ball 150.0 CFM (4.20mВі/min) 2 Wire Leads
| Вес, г | 330 |
| Потребляемая мощность, Вт | 10 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 52 dB |
| Series | OD1238 XC-> |
| Special Features | High Performance |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 38 |
| Питание | 2pin |
| Product Category | DC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Auto Restart |
| IP Rating | IP55 |
| Noise | 52.0dB |
| Power Rating | 10W |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 65000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Wire Leads |
| Width | 38.50mm |
| Category | DC Fan |
| COO | CN |
| Housing Material | Plastic |
| Maximum Airflow | 150 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 12 V |
| Единица измерения | шт |
| Current Rating (Amps) | 0.870A |
| Static Pressure | 0.38 in H2O(94.6 Pa) |
| Bearing Type | Ball Bearing |
| Current Rating | 870mA |
| Air Flow — CFM | 150CFM |
| External Depth | 38mm |
| Fan Frame Size | 120mm |
| Fan Frame Type | Square |
| Noise Rating | 52dBA |
| Power Connection Type | 2 Lead Wires |
| Product Range | OD1238 XC Series |
| Rated Speed | 3200rpm |
| Частота вращения,об./мин. | 3200 |
| Производительность,м.куб./мин. | 150 |
| Шум, дБA | 52 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 0.4inH2O |
| Minimum Operating Temperature (°C) | -10 |
| Protection | Auto Restart|Polarity |
| Shape | Square |
| Size (Metric) (mm) | 120 X 120 X 38.5 |
| Voltage Rating (V) | 12 |
| Power Rating (W) | 10.5 |
| Nominal Speed (r/min) | 3200 |
| Maximum Airflow (CFM) | 130 |
| Noise Level (dB) | 54.6 |
| Bearings | Ball |
| Line Current (A) | 0.87 |
| Operating Input Voltage Range (V) | 10 to 13.8 |
| Supply Voltage VDC | 12V |
Детали
| Бренд | Orion Fans |
|---|
