Mechatronics

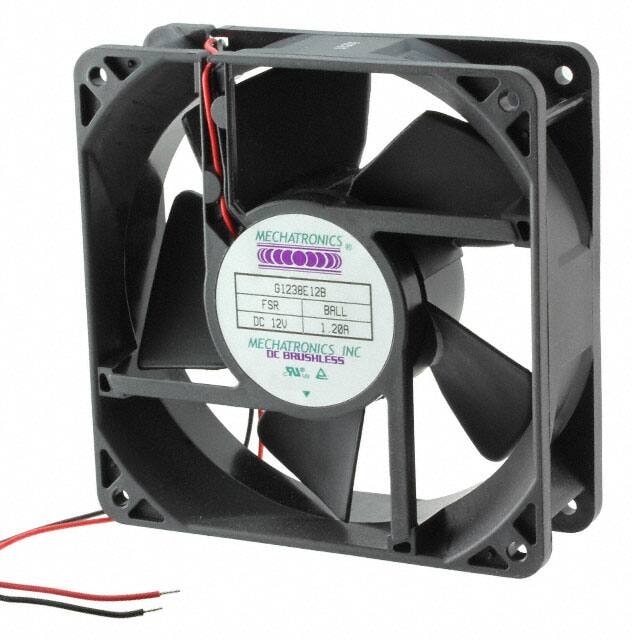

8005750344 G1238E12B-FSR, Fan Tubeaxial 12VDC Square — 119mm L x 119mm H Ball 158.0 CFM (4.42m³/min) 2 Wire Leads Hirschmann
4400,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 119mm L x 119mm H Ball 158.0 CFM (4.42mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | G1238-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 12 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Thermal Overload Protector(TOP) |
| Noise | 49.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Wire Leads |
| Weight | 0.74 lb(335.66 g) |
| Width | 38.00mm |
| COO | ID |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Current Rating (Amps) | 1.20A |
| Static Pressure | 0.49 in H2O(122.1 Pa) |
| Частота вращения,об./мин. | 3600 |
| Производительность,м.куб./мин. | 158 |
Детали
| Бренд | Mechatronics |
|---|
