Mechatronics

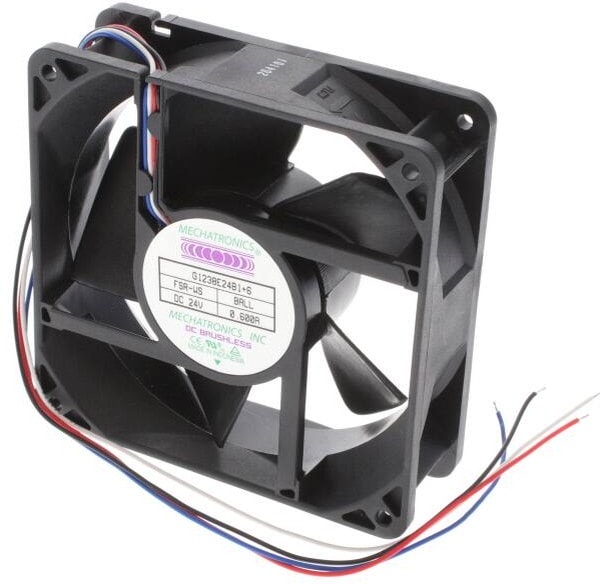

8006032941 G1238E24B1+6-FSR-WS, Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 158.0 CFM (4.42m³/min) 4 Wire Leads Hirschmann
5920,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 120mm L x 120mm H Ball 158.0 CFM (4.42mВі/min) 4 Wire Leads
| Fan Type | Tubeaxial |
| Series | G1238-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 24 |
| Питание | 4pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Alarm Sensor, PWM Control, Speed Sensor(Tach), Th |
| Noise | 49.0dB(A) |
| Approval Agency | CE, cUL, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 4 Wire Leads |
| Weight | 0.74 lb(335.66 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.600A |
| Static Pressure | 0.49 in H2O(122.1 Pa) |
| Частота вращения,об./мин. | 3600 |
| Производительность,м.куб./мин. | 158 |
Детали
| Бренд | Mechatronics |
|---|
