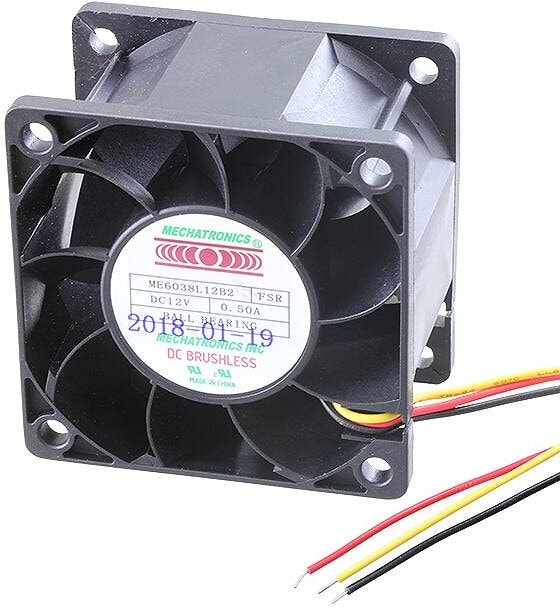

8006843606 ME6038L12B2-FSR, Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 35.5 CFM (0.994m³/min) 3 Wire Leads Hirschmann
3950,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 60mm L x 60mm H Ball 35.5 CFM (0.994mВі/min) 3 Wire Leads
| Fan Type | Tubeaxial |
| Series | ME6038-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 60×60 |
| Рабочее напряжение,В | 12 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Locked Rotor Sensor, Thermal Overload Protector(T |
| Noise | 48.5dB(A) |
| Approval Agency | cUL, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-60mm L x 60mm H |
| Termination | 3 Wire Leads |
| Weight | 0.23 lb(104.33 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.500A |
| Static Pressure | 0.52 in H2O(129.5 Pa) |
| Частота вращения,об./мин. | 6000 |
| Производительность,м.куб./мин. | 35.5 |
| Voltage Range | 7 ~ 13.2VDC |
Детали
| Бренд | Mechatronics |
|---|
