Mechatronics

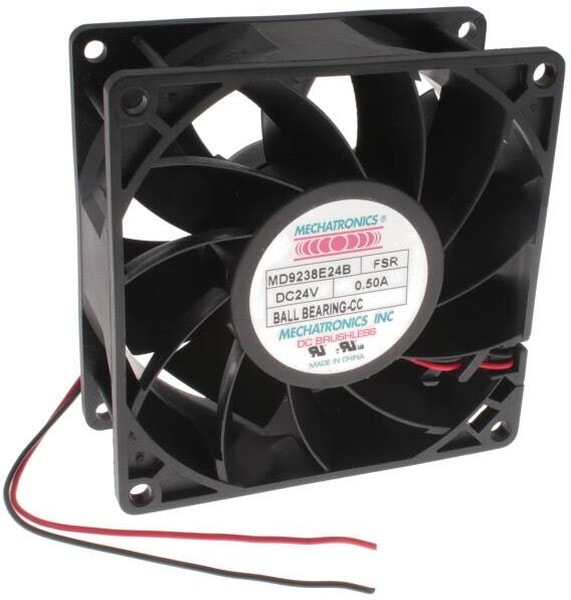

8006851846 MD9238E24B-FSR-CC-L10, Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 110.6 CFM (3.10m³/min) 2 Wire Leads Hirschmann
4420,00 ₽
Описание
Fan Tubeaxial 24VDC Square — 92mm L x 92mm H Ball 110.6 CFM (3.10mВі/min) 2 Wire Leads
| Fan Type | Tubeaxial |
| Series | MD9238-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 24 |
| Питание | 2pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Bulk |
| RoHS Status | RoHS Compliant |
| Features | Conformal Coating, Thermal Overload Protector(TOP |
| Noise | 55.0dB(A) |
| Approval Agency | CE, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Wire Leads |
| Weight | 0.397 lb(180.08 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.500A |
| Static Pressure | 0.67 in H2O(166.9 Pa) |
| Частота вращения,об./мин. | 4800 |
| Производительность,м.куб./мин. | 110.6 |
Детали
| Бренд | Mechatronics |
|---|
