EBM-PAPST

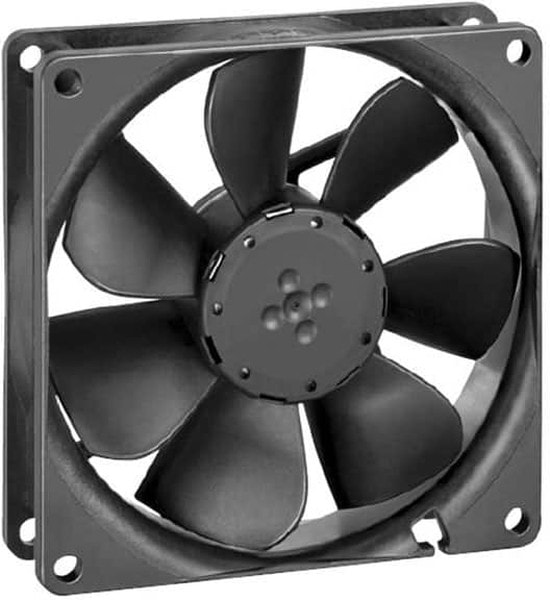

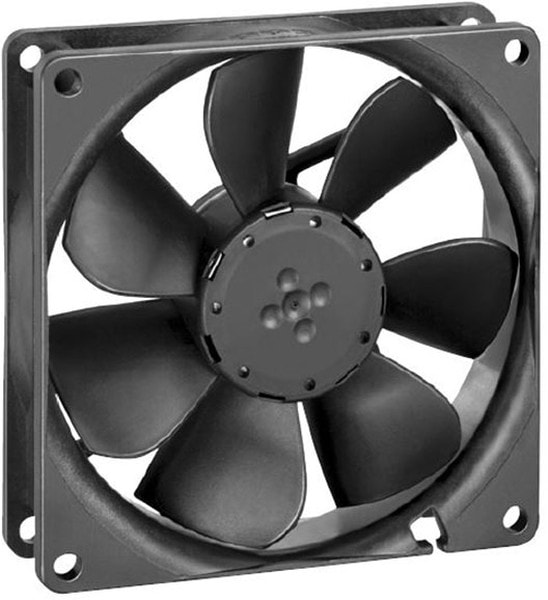

8026602689 Вентилятор ebmpapst 3414N/39HH 24V 3.2W 135mA 92×25 3pin Hirschmann
5010,00 ₽
Описание
3400N Tubeaxial DC Fans ebm-papst 3400N Tubeaxial DC Fans are 92mm x 92mm x 25mm fans with an electronically commutated external rotor motor. Offering fully integrated commutation electronics the 3400N fans provide electronic protection against reverse polarity, blocking, and overloading as well as partial impedance protection. These fans are made of fiberglass reinforced plastic and can be mounted from either face using four 4.3mm holes.
| Вес, г | 106 |
| Потребляемая мощность, Вт | 3.2 |
| Air Flow | 60 CFM(1.68m³/min) |
| Fan Type | Tubeaxial |
| Noise Level | 39 dB |
| Special Features | Speed/Rotation/Rotor-Lock Alarm |
| Размеры рамы,мм | 92×92 |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Питание | 3pin |
| Brand | ebm-papst |
| Factory Pack Quantity | 1 |
| Manufacturer | ebm-papst |
| Product Category | DC Fans |
| Product Type | DC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| Features | Alarm |
| Airflow | 60 CFM(1.7 m3/min) |
| Current Type | DC |
| Depth | 25 mm |
| IP Rating | IP20 |
| Noise | 38.0dB(A) |
| Operating Supply Voltage | 24 VDC |
| Power Rating | 3.1 W |
| Type | Tubeaxial |
| Approval Agency | CCC, CE, CSA, EAC, UL, VDE |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 3 Wire Leads |
| Width | 25.40mm |
| Category | DC Fan |
| Housing Material | Plastic |
| Maximum Airflow | 60 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 24 V |
| Единица измерения | шт |
| Static Pressure | 0.229 in H2O(57.0 Pa) |
| Bearing Type | Ball |
| Power (Watts) | 3.2 W |
| RPM | 3250 RPM |
| Voltage — Rated | 24VDC |
| Разъём питания, Pin | 3pin |
| Rotation Detect Signal Signal | Yes |
Детали
| Бренд | EBM-PAPST |
|---|
