Sanyo Denki

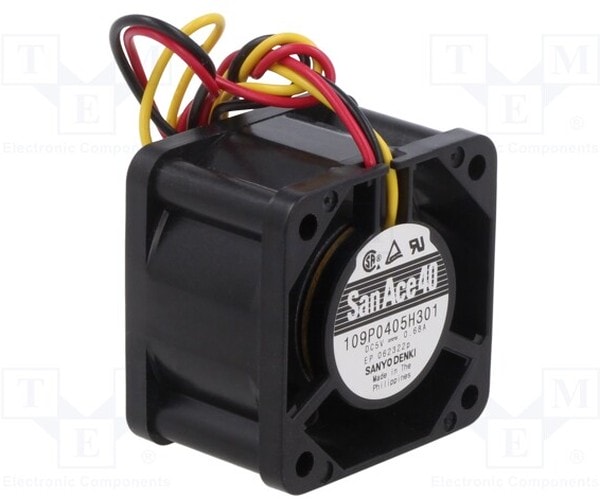

8040443211 Вентилятор Sanyo Denki San Ase 40 109P0405H301 5V DC 0.68A 40×28 3pin () Hirschmann
5230,00 ₽
Описание
Fan Tubeaxial 5VDC Square — 40mm L x 40mm H Ball 11.3 CFM (0.316m³/min) 3 Wire Leads
| Вес, г | 52 |
| Air Flow | 11.3 CFM(0.316m³/min) |
| Fan Type | Tubeaxial |
| Noise Level | 37dBA |
| Рабочее напряжение,В | 5 |
| Толщина,мм | 28 |
| Питание | 3pin |
| Manufacturer | SANYO DENKI |
| Features | Locked Rotor Protection, Speed Sensor(Tach) |
| Noise | 37.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -20…70°C |
| Termination | 3 Wire Leads |
| Width | 28.00mm |
| Enclosure material | plastic |
| Fan efficiency | 19.2m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x3 |
| Type of fan | DC |
| Power consumption | 3.4W |
| Static Pressure | 0.236 in H2O(58.8 Pa) |
| Bearing Type | Ball |
| Current Rating | 0.68A |
| Power (Watts) | 3.4 W |
| RPM | 8700 RPM |
| Voltage — Rated | 5VDC |
| Fan dimensions | 40x40x28mm |
| Cable length | 0.32m |
| Kind of Bearing | ball bearing |
| Rotational rate/speed | 8700rpm |
| Kind of material | flame retardant |
| Min. insulation resistance | 10MΩ |
| Operating voltage | 4.5…5.5V |
Детали
| Бренд | Sanyo Denki |
|---|
