Sanyo Denki

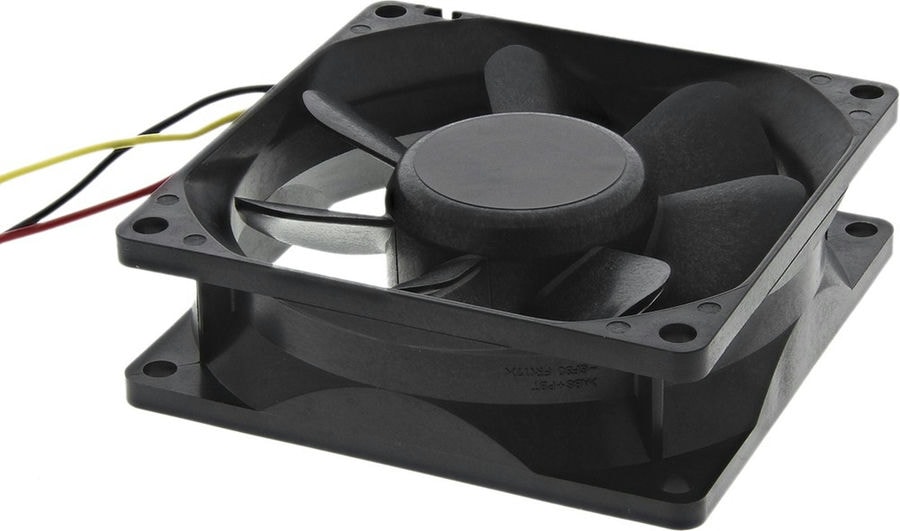

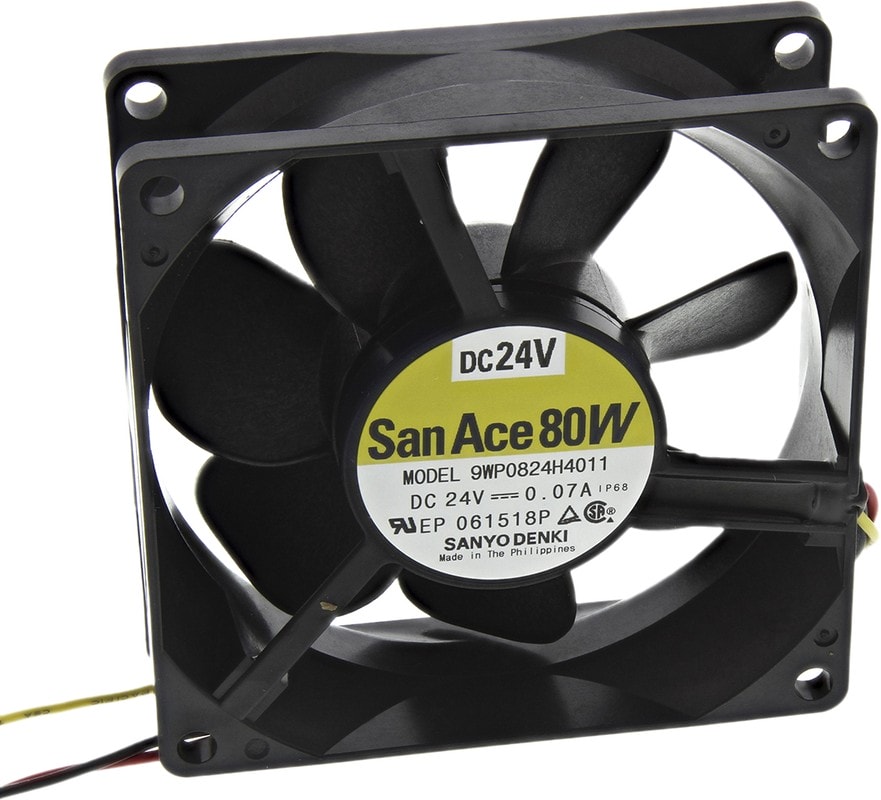

8045546281 Вентилятор Sanyo Denki San Ace 80W 9WP0824H4011 24V 0,11A 80×25 3pin () Hirschmann
3380,00 ₽
Описание
San Ace IP68 fans offer protection against dust, water jets and water immersion of up to 1m. Encapsulated motor with dual stainless steel ball bearing
| Вес, г | 80 |
| Air Flow | 61.9m³/h |
| Fan Type | Tubeaxial |
| Noise Level | 29dB |
| Supply Voltage | 24 V dc |
| Рабочее напряжение,В | 24 |
| Толщина,мм | 25 |
| Manufacturer | SANYO DENKI |
| Features | Speed Sensor(Tach) |
| IP Rating | IP68 |
| Noise | 29.0dB(A) |
| Approval Agency | CSA, TUV, UL |
| Operating Temperature | -4 ~ 158°F(-20 ~ 70°C) |
| Termination | 3 Wire Leads |
| Width | 80mm |
| Enclosure material | plastic |
| Fan efficiency | 61.8m3/h |
| Impeller material | plastic |
| Kind of fan | axial |
| Leads | lead x3 |
| Type of fan | DC |
| Power consumption | 1.68W |
| Ingress Protection | IP68-Dust Tight, Waterproof |
| Static Pressure | 0.142 in H2O(35.4 Pa) |
| Bearing Type | Ball |
| Current Rating | 0.13A |
| Производительность,м.куб./мин. | 36.4 |
| Power (Watts) | 1.68 W |
| RPM | 2900 RPM |
| Voltage — Rated | 24VDC |
| AC or DC Operation | DC |
| Maximum Current | 70mA |
| Fan dimensions | 80x80x25mm |
| Fan Speed | 2900rpm |
| Sensor Type | Tachometer |
| Cable length | 0.3m |
| Termination Type | Lead Wire |
| Kind of Bearing | ball |
| Rotational rate/speed | 2900rpm |
| Kind of material | flame retardant |
| Min. insulation resistance | 10MΩ |
| Operating voltage | 10.2…13.8V |
Детали
| Бренд | Sanyo Denki |
|---|
