Sunon

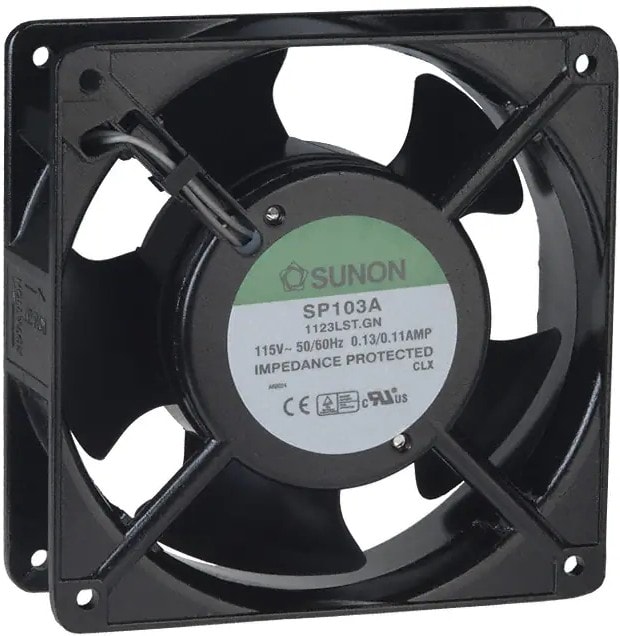

8004668396 SP103A-1123LST.GN, AC Fans Axial Fan, 120x120x38mm, 115VAC, 76/70CFM, 0.12/0.08″H2O, Sleeve, Terminals Hirschmann
3920,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 120mm L x 120mm H Sleeve 70.0 CFM (1.96mВі/min) 2 Terminals
| Вес, г | 0.01 |
| Потребляемая мощность, Вт | 11 |
| Fan Type | Tubeaxial |
| Series | SP-> |
| Тип подшипника | Sleeve |
| Размеры рамы,мм | 120×120 |
| Рабочее напряжение,В | 115 |
| Толщина,мм | 38 |
| Brand | Sunon |
| Manufacturer | Sunon |
| Product Category | AC Fans |
| Product Type | AC Fans |
| Subcategory | Fans, Blowers & Accessories |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Bulk |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Current Type | AC |
| Factory Pack Quantity: Factory Pack Quantity | 40 |
| Termination Style | Wire Leads |
| Type | Axial |
| Approval Agency | CE, CUR, TUV, UL |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-120mm L x 120mm H |
| Termination | 2 Terminals |
| Weight | 1.2 lbs(550 g) |
| Width | 38.00mm |
| COO | PH |
| Housing Material | Aluminum |
| RoHS | Yes |
| Supplier Standard Pack | 30 |
| Единица измерения | шт |
| Current Rating (Amps) | 0.110A |
| Static Pressure | 0.08 in H2O(20.0 Pa) |
| Part # Aliases | A12004230G-00 |
| Pressure Type | 0.12 in H2O |
| Частота вращения,об./мин. | 2200 |
| Производительность,м.куб./мин. | 76 |
| Шум, дБA | 38 |
| Voltage Range | 85 ~ 125VAC |
| Environmental Information | http://www.sunon.com/uFiles/file/01_about%20sunon/ |
Детали
| Бренд | Sunon |
|---|
