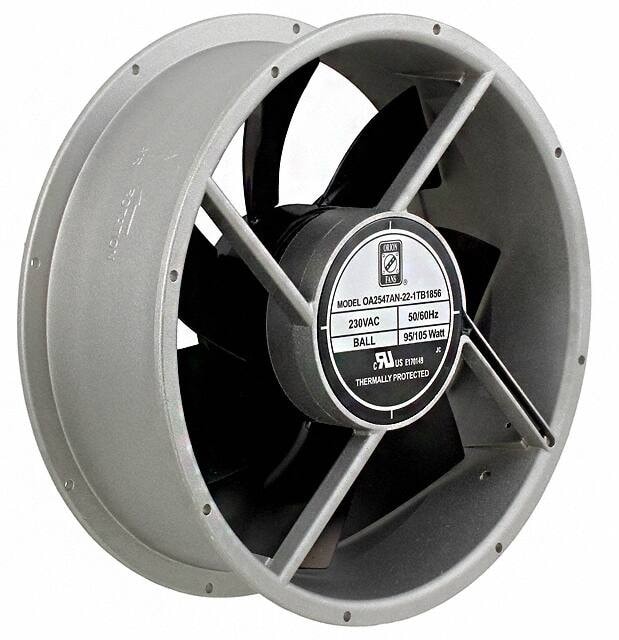

8005770687 OA2547AN-22-1TB1856, FAN AXIAL 254X89MM 230VAC TERM Hirschmann
31100,00 ₽
Описание
Fan Tubeaxial 230VAC Round — 254mm Dia Ball 1000.0 CFM (28.00mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 105 |
| Fan Type | Tubeaxial |
| Noise Level | 70 dB |
| Series | OA2547AN-> |
| Special Features | None |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 105 W |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Metal |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Round-254mm Dia |
| Termination | 2 Terminals |
| Weight | 5.9 lbs(2.7 kg) |
| Width | 89.00mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | DieCast Aluminum |
| Maximum Airflow | 1000CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Ingress Protection | IP56-Dust Protected, Water Resistant |
| Static Pressure | 0.6 in H2O(149.5 Pa) |
| Частота вращения,об./мин. | 3250 |
| Производительность,м.куб./мин. | 1000 |
| Шум, дБA | 70 |
| Voltage Range | 200 ~ 240VAC |
Детали
| Бренд | Orion Fans |
|---|
