NMB Technologies

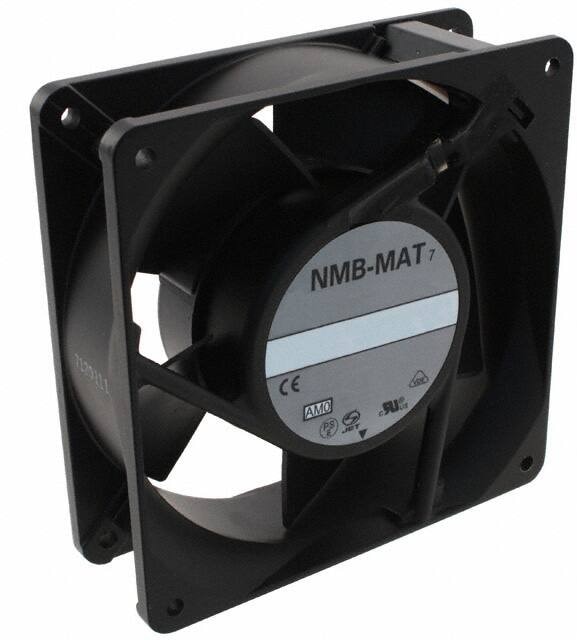

8005831562 4715HS-12T-B50-AM0, Fan Tubeaxial 115VAC Square — 119mm L x 119mm H Ball 105.9 CFM (2.97m³/min) 2 Terminals Hirschmann
7650,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 119mm L x 119mm H Ball 105.9 CFM (2.97mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 15.5 |
| Fan Type | Tubeaxial |
| Series | HS-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| RoHS Status | RoHS Compliant |
| Approval Agency | CE, UL, VDE |
| Lifetime @ Temp. | 100000 Hrs @ 25В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Aluminum |
| Operating Temperature | 14 ~ 149В°F(-10 ~ 65В°C) |
| Size / Dimension | Square-119mm L x 119mm H |
| Termination | 2 Terminals |
| Weight | 1.3 lbs(589.7 g) |
| Width | 38.00mm |
| Current Rating (Amps) | 0.025A |
| Ingress Protection | IP54-Dust Protected, Water Resistant |
| Static Pressure | 0.4 in H2O(99.6 Pa) |
| Частота вращения,об./мин. | 3100 |
| Производительность,м.куб./мин. | 105.9 |
| Шум, дБA | 44 |
Детали
| Бренд | NMB Technologies |
|---|
