Orion Fans

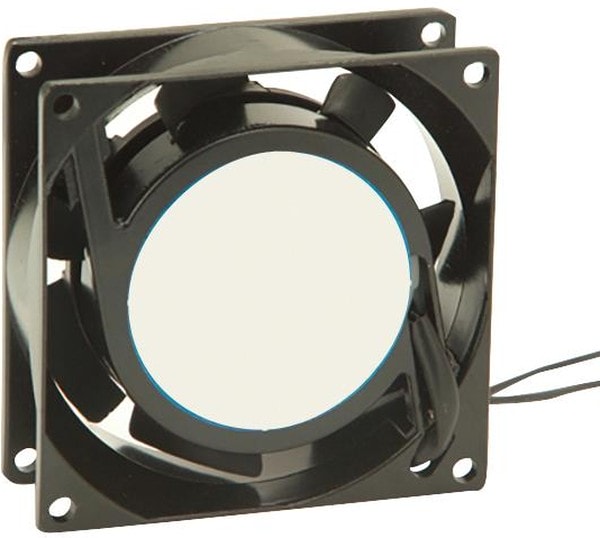

8005864049 OA825AP-22-1WB, Fan Tubeaxial 230VAC Square — 80mm L x 80mm H Ball 25.0 CFM (0.700m³/min) 2 Wire Leads Hirschmann
4910,00 ₽
Описание
Fan Tubeaxial 230VAC Square — 80mm L x 80mm H Ball 25.0 CFM (0.700mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 9 |
| Fan Type | Tubeaxial |
| Mounting | Flange Mount |
| Noise Level | 28 dB |
| Series | OA825-> |
| Special Features | High Speed |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 25 |
| Product Category | AC Fan |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Power Rating | 9W |
| Type | Axial |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Width | 27.00mm |
| Category | AC Fan |
| COO | TW |
| Housing Material | Die-Cast Aluminum |
| Maximum Airflow | 25 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 230 V |
| Единица измерения | шт |
| Static Pressure | 0.21 in H2O(52.3 Pa) |
| Bearing Type | Ball Bearing |
| Air Flow — CFM | 25CFM |
| External Depth | 26mm |
| Fan Frame Size | 80mm |
| Fan Frame Type | Square |
| Noise Rating | 28dBA |
| Nominal Rated Voltage AC | 230V |
| Power Connection Type | 2 Lead Wires |
| Product Range | OA825 Series |
| Rated Speed | 3000rpm |
| Частота вращения,об./мин. | 3000 |
| Производительность,м.куб./мин. | 25 |
| Шум, дБA | 25 |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | EAR99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Pressure | 0.21inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Protection | Impedance |
| Shape | Square |
| Voltage Range | 160 ~ 260VAC |
| Size (Metric) (mm) | 80 X 80 X 27 |
| Voltage Rating (V) | 230 |
| Power Rating (W) | 9 |
| Nominal Speed (r/min) | 3000 |
| Maximum Airflow (CFM) | 25 |
| Noise Level (dB) | 28 |
| Bearings | Ball |
| Operating Input Voltage Range (V) | 160 to 260 |
Детали
| Бренд | Orion Fans |
|---|
