Orion Fans

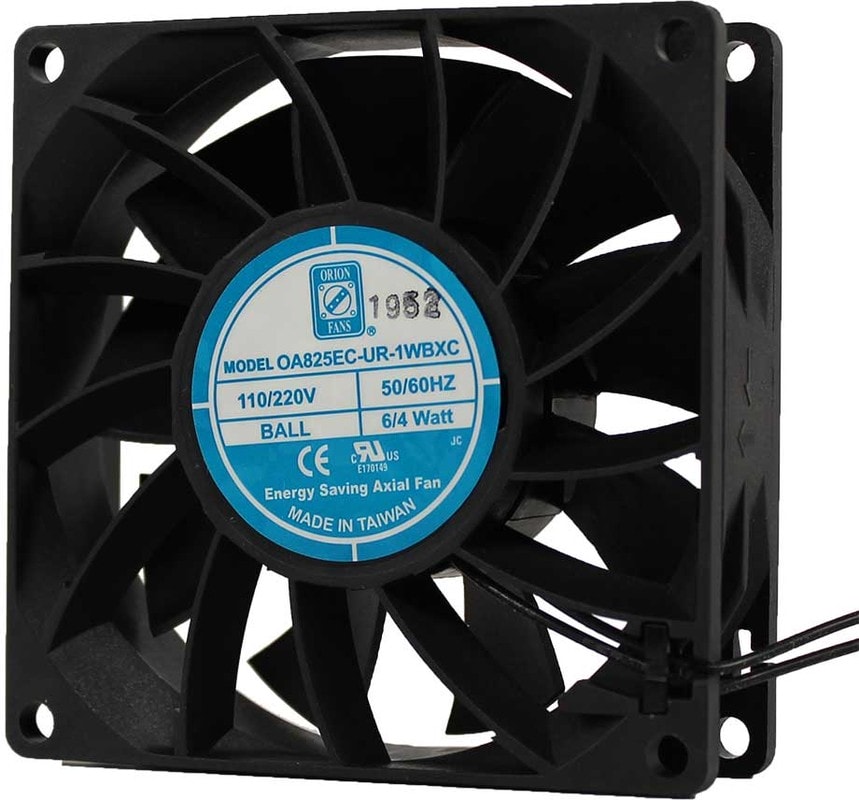

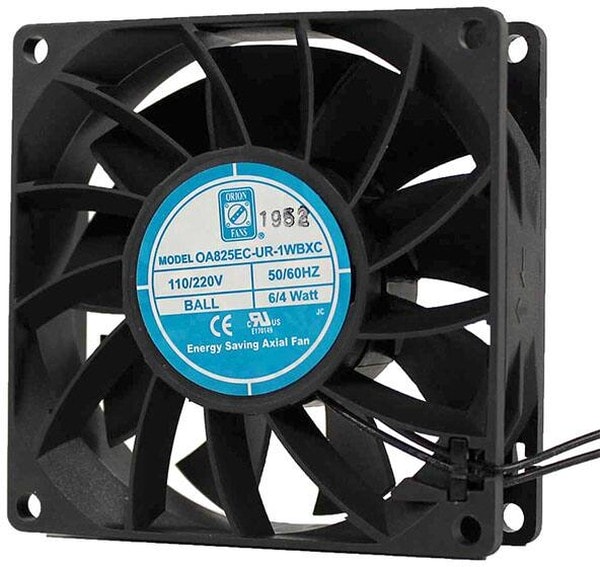

8007112144 OA825EC-UR-1WBXC, EC Fans EC Axial Fan, Universal Range, 25x80x38mm, 115VAC/230VAC, 40.2CFM, 0.2″H20, Wire Hirschmann
4680,00 ₽
Описание
Fan Tubeaxial 110/220VAC Square — 80mm L x 80mm H Ball 40.2 CFM (1.13mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 2.2 |
| Fan Type | Tubeaxial |
| Series | OA825EC XC-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 80×80 |
| Рабочее напряжение,В | 230 |
| Толщина,мм | 38 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Package | Box |
| RoHS Status | ROHS3 Compliant |
| Features | Dual Voltage, Electronic Commutation(EC) |
| Approval Agency | CE, cURus, TUV, UR |
| Lifetime @ Temp. | 70000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Polybutylene Terephthalate(PBT) |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-80mm L x 80mm H |
| Termination | 2 Wire Leads |
| Weight | 0.18 lb(81.65 g) |
| Width | 25.20mm |
| COO | TW |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Единица измерения | шт |
| Static Pressure | 0.2 in H2O(49.8 Pa) |
| Частота вращения,об./мин. | 3000 |
| Производительность,м.куб./мин. | 40.2 |
| Шум, дБA | 38 |
| Voltage Range | 85 ~ 265VAC |
Детали
| Бренд | Orion Fans |
|---|
