EBM-PAPST
8006023941 R2E225-BE51-09, Fan Motorized Impellers 115VAC Round — 225mm Dia Ball 756.0 CFM (21.17m³/min) 4 Wire Leads Hirschmann
48490,00 ₽
Описание

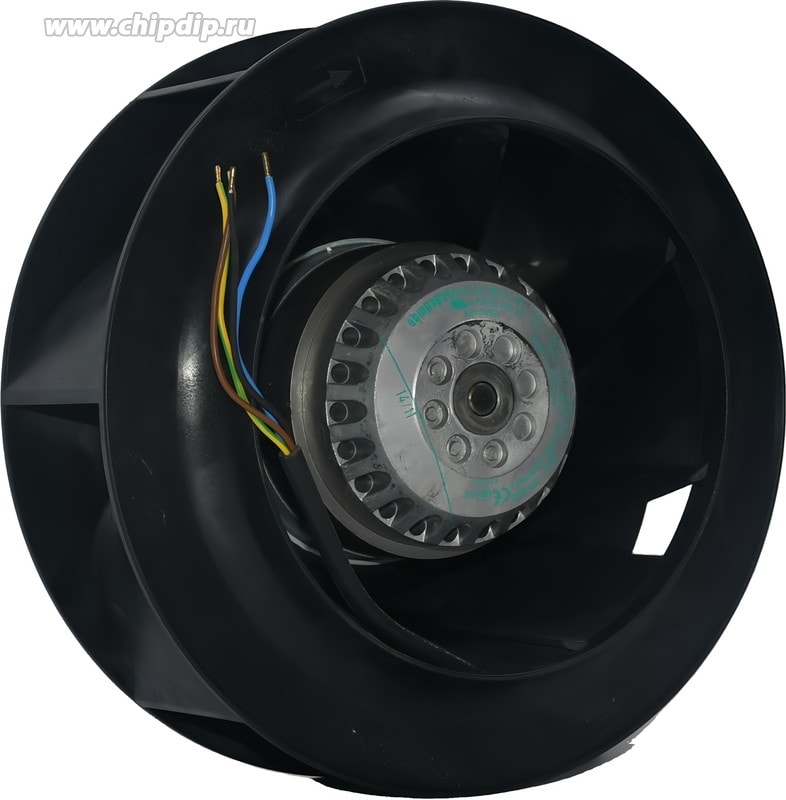

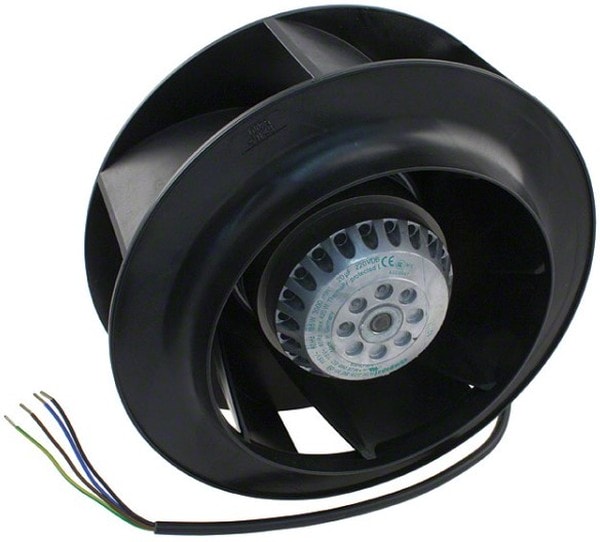

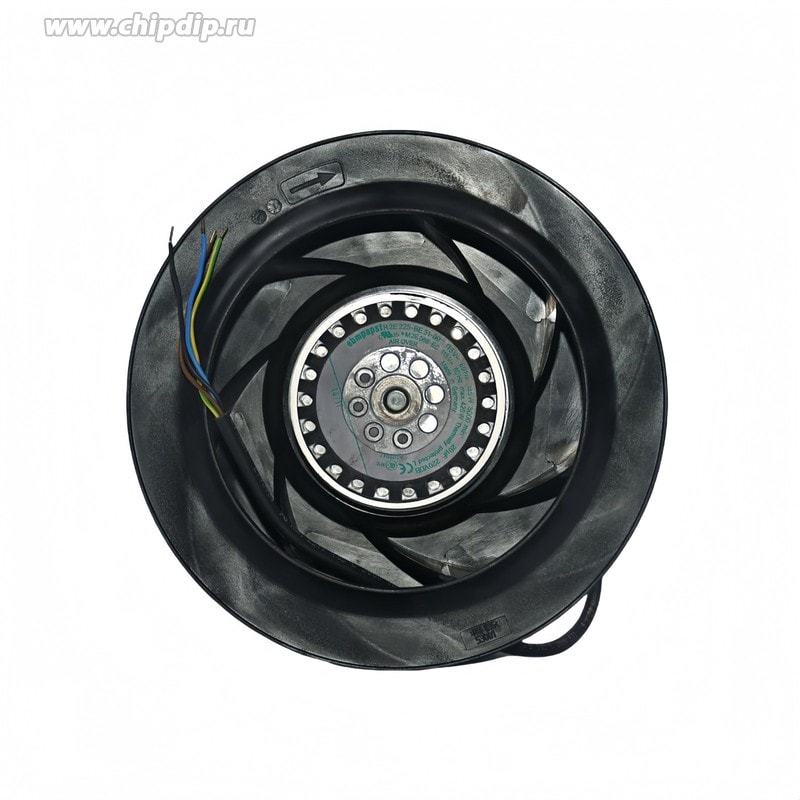

The R2E225-BE51-09 is a 115VAC Motorized Impeller/EC Centrifugal Fan with a maintenance-free ball bearing and fiberglass-reinforced plastic PA 6.6 impeller. This R2E225 series Ø225mm backward curved impeller is highly resistance to dirt and dust. It features variable cable exit and very high hydraulic efficiency. The direction of rotation is clock wise as seen from the intake side.
| Noise Level | 75 dB |
| Special Features | N/A |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| Power Rating | 185 W |
| Operating Temperature | 0 to 50 °C |
| Termination | Lead Wires |
| Category | AC Motorized Impeller |
| COO | DE |
| Housing Material | N/A |
| Maximum Airflow | 756 CFM |
| RoHS | Yes |
| Supplier Standard Pack | 1 |
| Voltage Rating | 115 V |
| Единица измерения | шт |
Детали
| Бренд | EBM-PAPST |
|---|
