Orion Fans

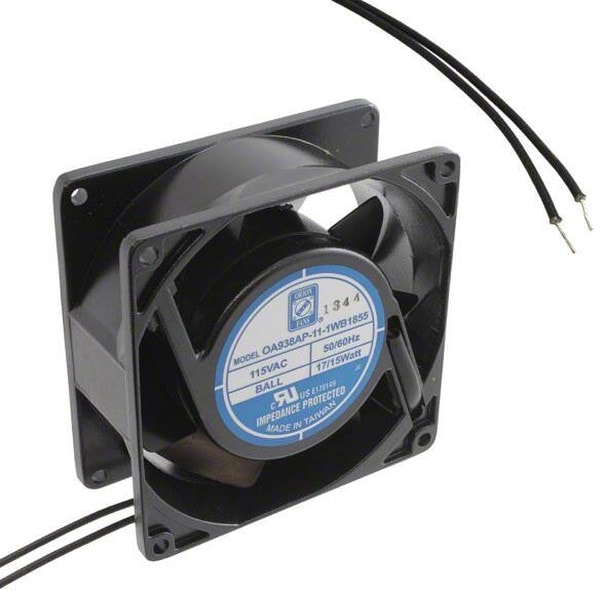

8006036858 OA938AP-11-1WB1855, Fan Tubeaxial 115VAC Square — 92mm L x 92mm H Ball 55.0 CFM (1.54m³/min) 2 Wire Leads Hirschmann
8040,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 92mm L x 92mm H Ball 55.0 CFM (1.54mВі/min) 2 Wire Leads
| Потребляемая мощность, Вт | 15 |
| Fan Type | Tubeaxial |
| Series | OA938-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 50000 Hrs @ 55В°C |
| Material — Blade | Metal |
| Material — Frame | Aluminum |
| Operating Temperature | -22 ~ 176В°F(-30 ~ 80В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Wire Leads |
| Weight | 1.1 lbs(499.0 g) |
| Width | 38.00mm |
| Ingress Protection | IP55-Dust Protected, Water Resistant |
| Static Pressure | 0.22 in H2O(54.8 Pa) |
| Частота вращения,об./мин. | 3150 |
| Производительность,м.куб./мин. | 55 |
| Шум, дБA | 40 |
| Voltage Range | 100 ~ 120VAC |
Детали
| Бренд | Orion Fans |
|---|
