Orion Fans

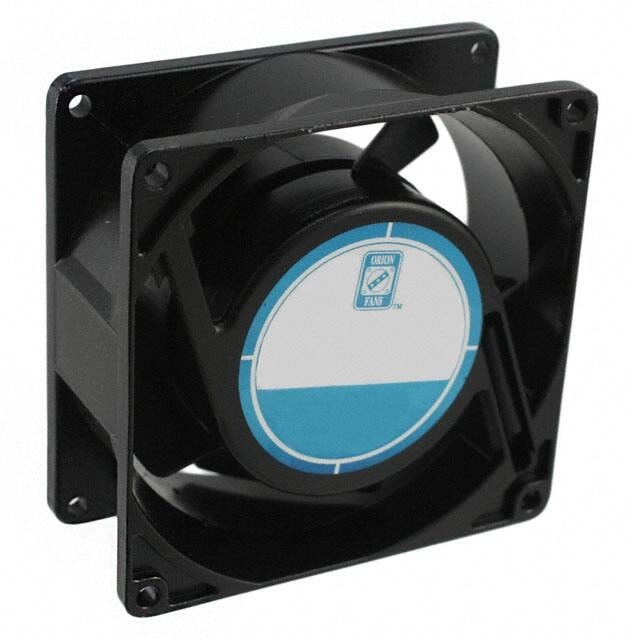

8006808689 OA938AP-11-2TB, Fan Tubeaxial 115VAC Square — 92mm L x 92mm H Ball 39.0 CFM (1.09m³/min) 2 Terminals Hirschmann
5090,00 ₽
Описание
Fan Tubeaxial 115VAC Square — 92mm L x 92mm H Ball 39.0 CFM (1.09mВі/min) 2 Terminals
| Потребляемая мощность, Вт | 5 |
| Fan Type | Tubeaxial |
| Series | OA938-> |
| Тип подшипника | Ball |
| Рабочее напряжение,В | 115 |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 40В°C |
| Material — Blade | Polybutylene Terephthalate(PBT) |
| Material — Frame | Aluminum |
| Operating Temperature | -4 ~ 176В°F(-20 ~ 80В°C) |
| Size / Dimension | Square-92mm L x 92mm H |
| Termination | 2 Terminals |
| Width | 38.50mm |
| Static Pressure | 0.17 in H2O(42.3 Pa) |
| Частота вращения,об./мин. | 2400 |
| Производительность,м.куб./мин. | 39 |
| Шум, дБA | 23 |
| Voltage Range | 80 ~ 130VAC |
Детали
| Бренд | Orion Fans |
|---|
