Sanyo Denki

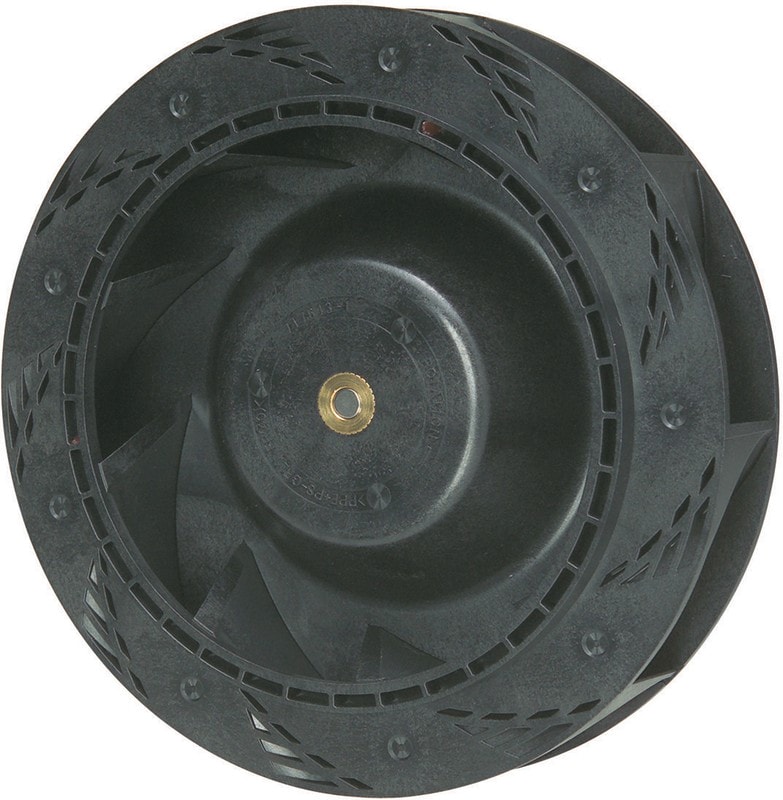

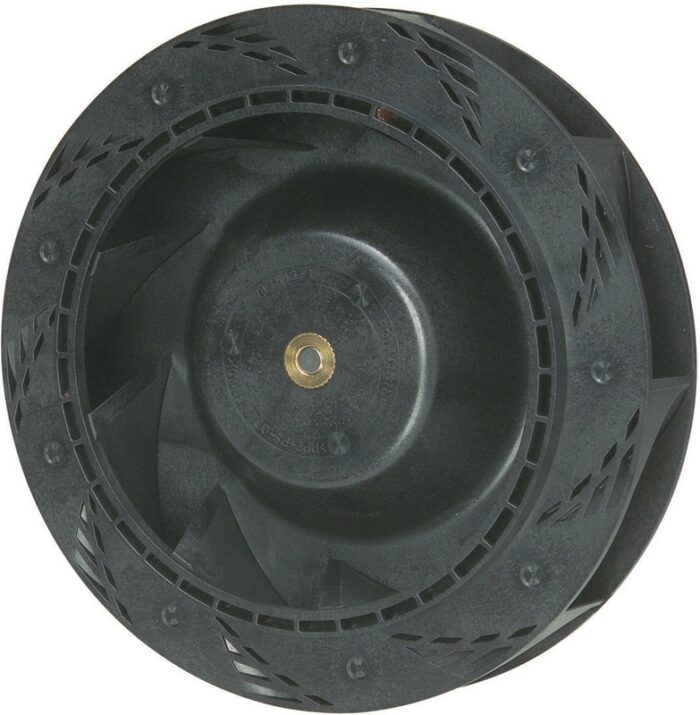

8008385414 9TN24P1H01, Blowers & Centrifugal Fans Centrifugal Fan, 150x35mm Round, 24VDC, Tach/PWM, Inlet Nozzle Required 109-1081 Hirschmann
13390,00 ₽
Описание
Centrifugal Fans blow air perpendicular to the inlet direction. They particularly excel in static pressure, and are ideal for cooling high mounting density equipment including servers storage systems, and heat exchangers.
| Диаметр воздуховодов, мм | 150 |
| Air Flow | 135cfm |
| Mounting | Flange Mount |
| Noise Level | 59dB(A) |
| Series | San Ace C150 |
| Special Features | Sensor |
| Supply Voltage | 24 V dc |
| Product Category | DC Motorized Impeller |
| Type | Centrifugal |
| Width | 150mm |
| Static Pressure | 410Pa |
| Blower Type | Centrifugal |
| AC or DC Operation | DC |
| Maximum Current | 620mA |
| Fan Speed | 3800rpm |
| Direction of Curve | Forward |
| Mounting hole diameter | 4mm |
| Horizontal Hole Spacing | 64mm |
| Mounting Hole Spacing | 64mm |
| Sensor Type | PWM |
| Vertical Hole Spacing | 64mm |
| Termination Type | Lead Wire |
| Automotive | Unknown |
| Part Status | Active |
| PPAP | Unknown |
| ECCN (US) | 4A994 |
| EU RoHS | Compliant |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Pressure | 1.65inH2O |
| Minimum Operating Temperature (°C) | -20 |
| Shape | Round |
| Size (mm) | 150 X 35 |
| Voltage Rating (V) | 24 |
| Power Rating (W) | 14.9 |
| Nominal Speed (r/min) | 3800 |
| Maximum Airflow (CFM) | 135 |
| Noise Level (dB) | 59 |
| Bearings | Ball |
| Line Current (A) | 0.62 |
| Operating Input Voltage Range (V) | 20.4 to 27.6 |
| Inlet Diameter | 105mm |
| Outlet Diameter | 0 |
Детали
| Бренд | Sanyo Denki |
|---|
