Sanyo Denki

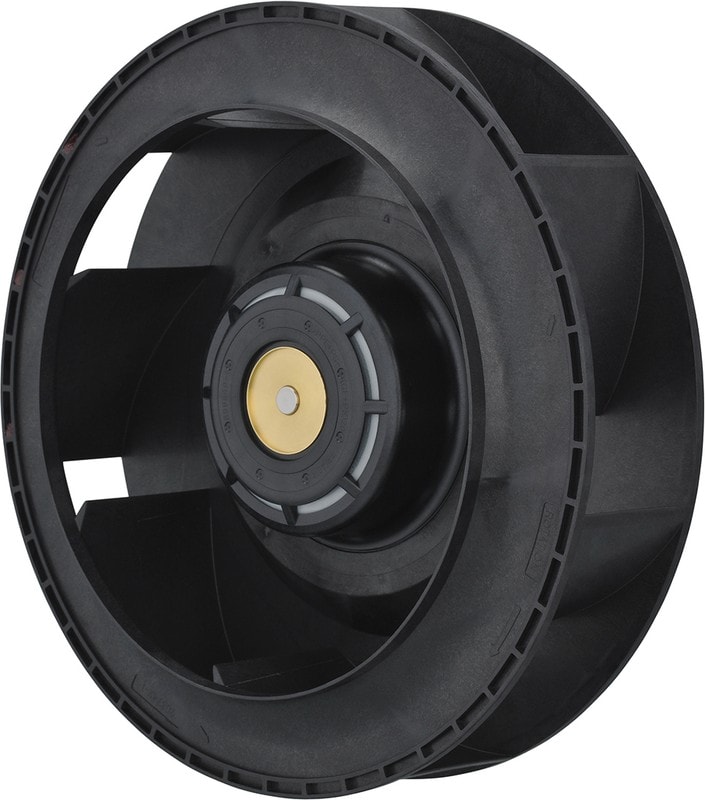

8020684390 9TP48G0002, San Ace C221 Series Centrifugal Fan, 48 V dc, 742cfm, DC Operation, 221 x 221 x 71mm Hirschmann
117600,00 ₽
Описание
Centrifugal Fans blow air perpendicular to the inlet direction. They particularly excel in static pressure, and are ideal for cooling high mounting density equipment including servers storage systems, and heat exchangers.
| Air Flow | 742cfm |
| Noise Level | 74dB(A) |
| Series | San Ace C221 |
| Special Features | 50/60 Hz, 500 VAC, for 1 Minute, Impeller:Plastic(Flammability:UL 94V-0), Locked Rotor Burnout Protection, Motor Case:Aluminum(Black Coating), Reverse Polarity Protection |
| Supply Voltage | 48 V dc |
| Width | 221mm |
| Static Pressure | 760Pa |
| Blower Type | Centrifugal |
| AC or DC Operation | DC |
| Maximum Current | 2.75A |
| Fan Speed | 3650rpm |
| Direction of Curve | Forward |
| Mounting hole diameter | 4mm |
| Horizontal Hole Spacing | 58mm |
| Mounting Hole Spacing | 58mm |
| Sensor Type | PWM |
| Vertical Hole Spacing | 58mm |
| Termination Type | Lead Wire |
| Inlet Diameter | 161mm |
| Outlet Diameter | 0 |
Детали
| Бренд | Sanyo Denki |
|---|
