Comair Rotron

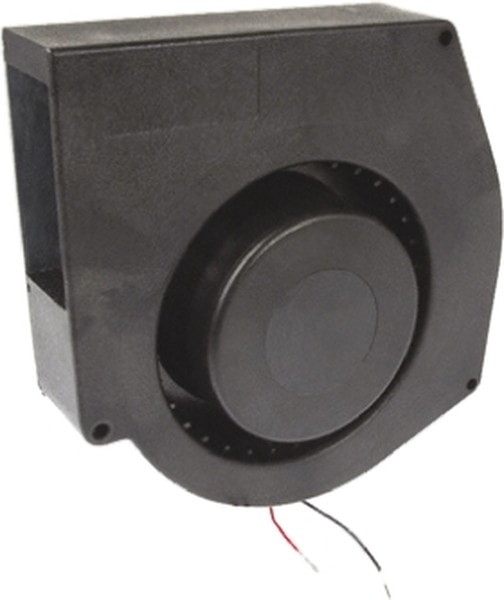

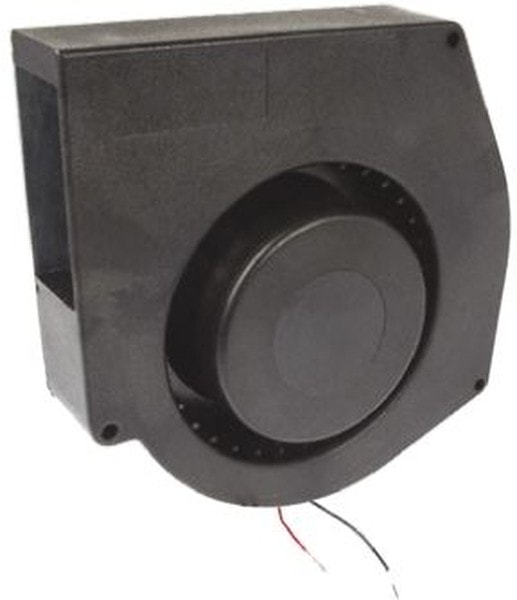

8002719838 SPD24B1QDN 19032364A, Spinnaker Series Centrifugal Fan, 24 V dc, 60cfm, DC Operation, 161 x 161 x 50mm Hirschmann
25530,00 ₽
Описание
The COMAIR ROTRON spinnaker 24VDC radial blower has an automatic restart capability. It features an electronically locked rotor protection via a current limiter.
| Вес, кг | 1.3 |
| Air Flow | 60cfm |
| Noise Level | 57dB(A) |
| Series | Spinnaker |
| Supply Voltage | 24 V dc |
| Width | 161mm |
| Static Pressure | 1.1in/H2O |
| Bearing Type | Ball |
| Blower Type | Blower |
| AC or DC Operation | DC |
| Maximum Current | 1.25A |
| Fan Speed | 2500rpm |
| Direction of Curve | Backward |
| Mounting hole diameter | 4.77mm |
| Commutation Type | Brushless |
| Horizontal Hole Spacing | 144.27mm |
| Mounting Hole Spacing | 127.9×144.27mm |
| Sensor Type | Tachometer |
| Vertical Hole Spacing | 127.89mm |
| Termination Type | Lead Wire |
| Inlet Diameter | 101.6mm |
Детали
| Бренд | Comair Rotron |
|---|
