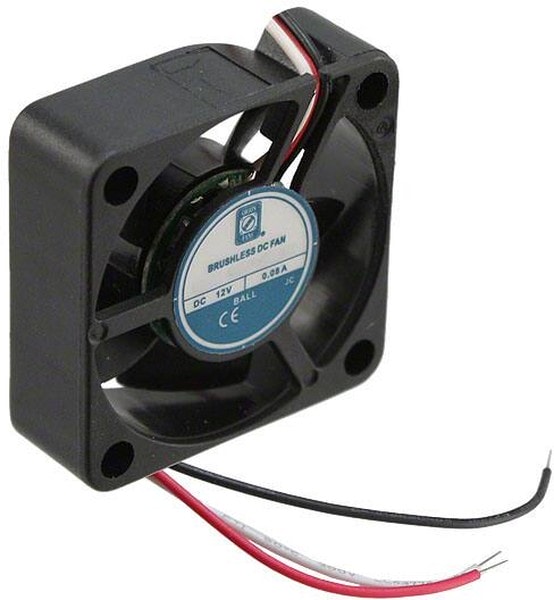

8005184023 OD3010-12HB01A, DC Fans DC Fan, 30x30x10mm, 12VDC, 4.6CFM, 0.1A, 31dBA, Ball, Wire, Open Collector Tach Hirschmann
2620,00 ₽
Описание
Fan Tubeaxial 12VDC Square — 30mm L x 30mm H Ball 5.0 CFM (0.140mВі/min) 3 Wire Leads
| Вес, г | 9 |
| Fan Type | Tubeaxial |
| Series | OD3010-> |
| Тип подшипника | Ball |
| Размеры рамы,мм | 30×30 |
| Рабочее напряжение,В | 12 |
| Толщина,мм | 10 |
| Питание | 3pin |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| Moisture Sensitivity Level (MSL) | 1(Unlimited) |
| Package | Box |
| REACH Status | REACH Unaffected |
| RoHS Status | ROHS3 Compliant |
| Features | Speed Sensor(Tach) |
| Noise | 32.0dB |
| Approval Agency | cURus, TUV |
| Lifetime @ Temp. | 60000 Hrs @ 45В°C |
| Material — Blade | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Material — Frame | Polybutylene Terephthalate(PBT), Fiberglass Reinf |
| Operating Temperature | 14 ~ 158В°F(-10 ~ 70В°C) |
| Size / Dimension | Square-30mm L x 30mm H |
| Termination | 3 Wire Leads |
| Width | 10.20mm |
| Current Rating (Amps) | 0.100A |
| Static Pressure | 0.2 in H2O(49.8 Pa) |
| Частота вращения,об./мин. | 11000 |
| Производительность,м.куб./мин. | 4.6 |
| Шум, дБA | 31 |
| Voltage Range | 8 ~ 17VDC |
Детали
| Бренд | Orion Fans |
|---|
